KRVE47 PP RICH 20x47x24

Fine-tune precision with the KRVE47.PP RICH cam follower. 20x47x24mm, M20x1.5 stud, China.

RICH
KRVE47PP
€10.67
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

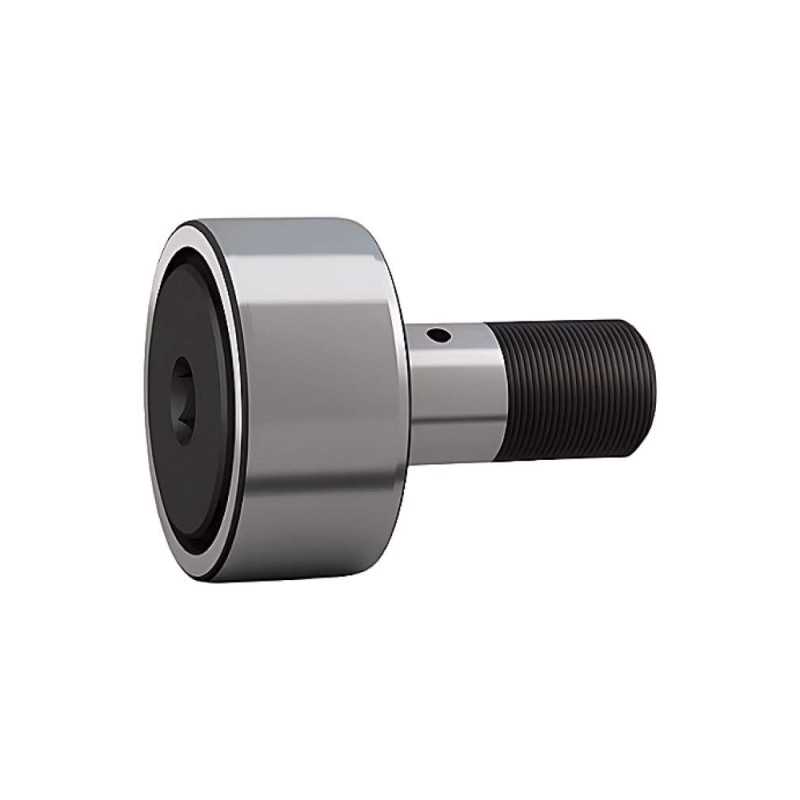

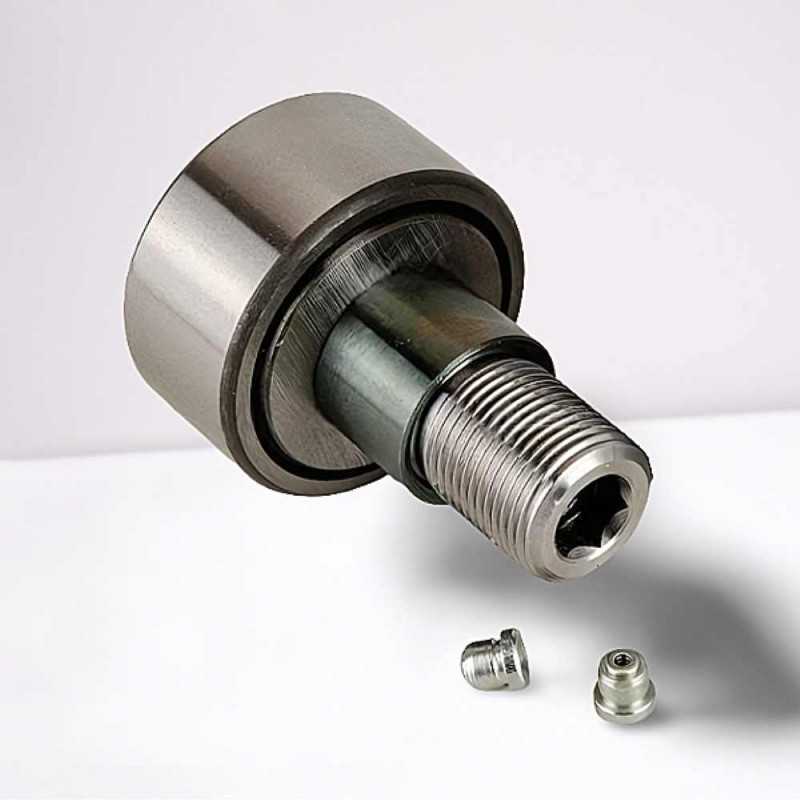

KRVE47 PP RICH Cam Follower, Eccentric Stud - 20 x 47 x 24 mm

The KRVE47 PP RICH is a cam follower with an eccentric stud, designed for motion control applications where precise adjustment or alignment is required. This component has key roller dimensions of 20 mm inner diameter, 47 mm outer diameter, and a roller width of 24 mm. The bearing length (B1) is 66 mm. It features no cage, a rounded outer ring, and double-sided rubber contact seals. The thread size of the eccentric stud is M20x1.5. It weighs approximately 0.415 kg and is made in China. Cam followers with eccentric studs allow for fine-tuning of the roller position relative to the mounting surface, which is crucial in many automation and mechanical guidance systems. The rounded outer ring helps to reduce stress on the mating track, and the double-sided rubber seals provide protection against contaminants. The absence of a cage indicates a full complement of rolling elements, maximizing load capacity.

Key Specifications:

  • Component Type: Cam Follower, Eccentric Stud
  • Model:** KRVE47 PP RICH
  • Inner Diameter (d): 20 mm (of the integrated bearing)
  • Outer Diameter (D): 47 mm (of the roller)
  • Roller Width (B): 24 mm
  • Bearing Length (B1): 66 mm
  • Cage Material:** None
  • Outer Ring Shape:** Rounded
  • Sealing:** Double-sided Rubber, Contact
  • Thread Size:** M20x1.5
  • Weight:** 0.415 kg
  • Country of Origin:** China

Key Features:

  • Eccentric Stud:** Allows for precise adjustment and alignment during mounting.
  • Rounded Outer Ring:** Helps to reduce stress and wear on the cam or track.
  • Full Complement Rollers (No Cage):** Maximizes radial load capacity.
  • Double-Sided Rubber Seals:** Offers protection against dust and other contaminants.
  • High Load Capacity:** Designed to support significant radial loads in motion control systems requiring adjustment.
  • Versatile Application:** Used in a wide range of automation and mechanical guidance systems where fine-tuning is necessary.
  • Manufacturing Origin:** Made in China.

Data sheet

Weight
0,415
