  • LS 80105 RICH Axial Bearing LS80105 RICH

LS 80105 RICH Axial Bearing

RICH
LS80105
€5.65
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

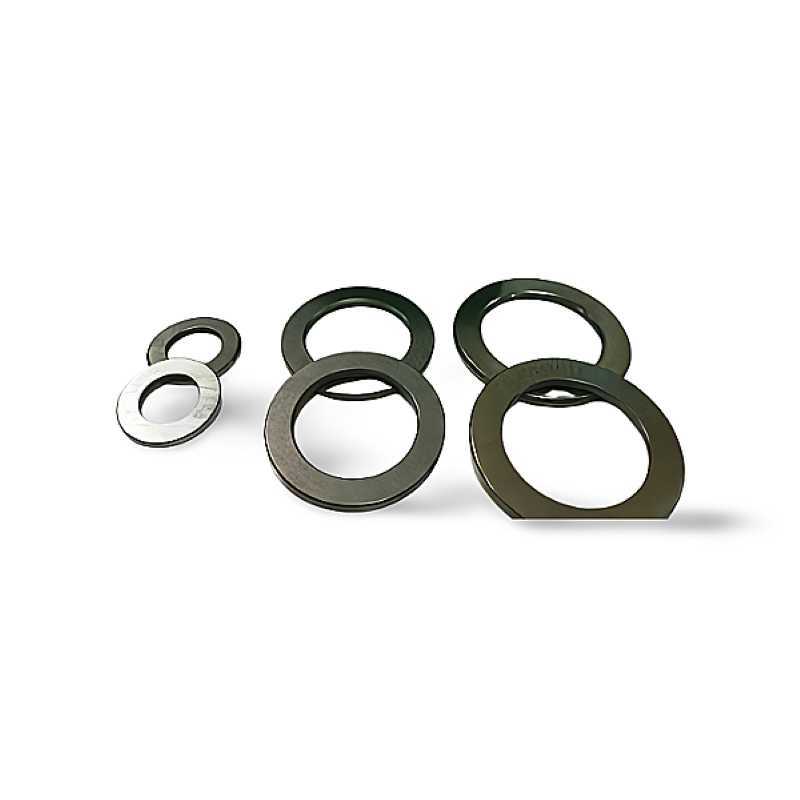

LS 80105 RICH Axial Bearing Washer - 80 x 105 x 5.75 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 80105
  • Brand: RICH
  • Bore Diameter (d): 80 mm
  • Outer Diameter (D): 105 mm
  • Thickness (H): 5.75 mm
  • Weight: 0.158 kg
  • Country of Origin: China

The LS 80105 RICH is a large, precision-engineered axial bearing washer designed to function as a hardened and finely ground raceway surface. This component is crucial for effective use with axial (thrust) needle roller and cage assemblies, particularly in applications where the adjacent machine parts lack the required surface hardness or finish to act as a proper bearing raceway. With substantial dimensions of 80 mm bore, 105 mm outer diameter, and a robust 5.75 mm thickness, the LS 80105 RICH is built to facilitate high axial load capacity while maintaining low friction. This high-quality washer ensures the reliable and extended service life of the corresponding thrust bearing in heavy-duty industrial equipment.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under significant thrust forces.
  • Robust Design: Large dimensions and thickness ensure stability in heavy-duty applications.
  • Versatility: Can be used as either a shaft or housing washer (AS or WS) for needle roller thrust bearings.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
80
Outer Diameter
105
Width
5,75
Weight
0,158
Category
Axial Bearing Washer
