SS UP003 RICH SS-UP003 RICH
zoom_out_map
SS UP003 RICH SS-UP003 RICH

SS UP003 RICH

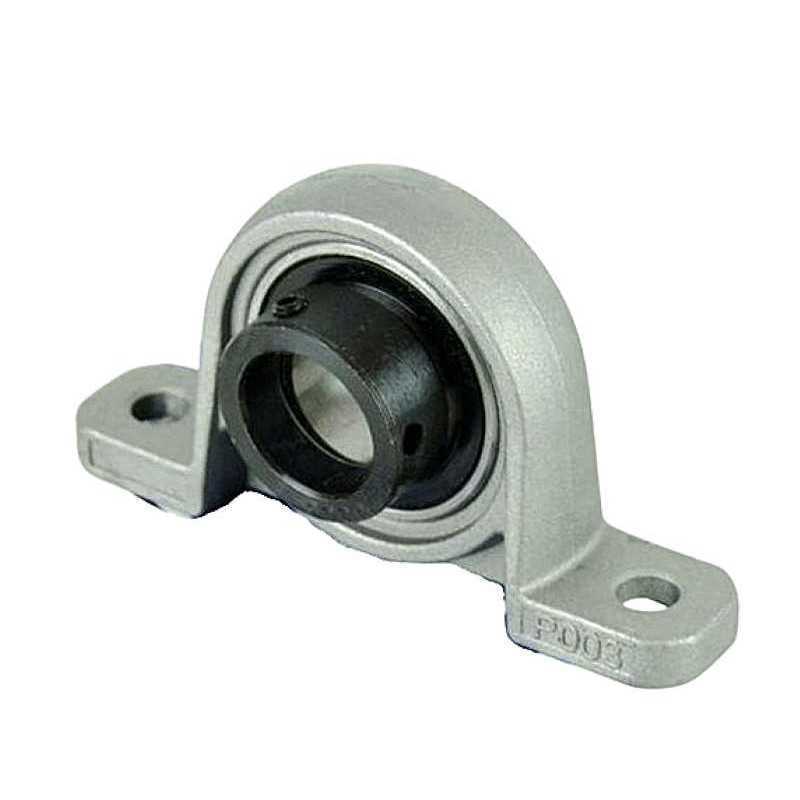

The SS UP003 RICH Pillow Block (17 mm shaft) features a **zinc alloy housing** and **stainless steel bearing** (SS) for maximum corrosion resistance and low weight.

RICH
SS-UP003
€14.25
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SS UP003 RICH Pillow Block with Zinc Alloy Housing - Stainless Steel Bearing - 17 mm Shaft Diameter

Technical Specifications:

  • Brand: RICH
  • Type: Pillow Block with Zinc Alloy Housing (UP Type)
  • Model: SS UP003
  • Inner Diameter (d): 17 mm
  • Housing Length (L): 85 mm
  • Bolt Hole Spacing (J): 67 mm
  • Dimensions: 17 mm Shaft Diameter
  • Housing Material: Zinc Alloy
  • Insert Material: Stainless Steel (SS)
  • Base Height (A): 18 mm
  • Bolt Hole Diameter (N): 7 mm
  • Weight: 0.171 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maximum Corrosion Protection: Combination of **zinc alloy housing** and **stainless steel bearing** (SS) is ideal for humid or washdown environments.
  • Lightweight and Hygienic: Offers significant weight savings and resistance to corrosive cleaning agents.
  • Compact Design: Ideal for light-to-medium duty applications where size and weight are constraints.
  • Easy Installation: Pillow block design allows for quick and secure two-bolt mounting.

Transparency Note

The SS UP003 bearing unit is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.

Data sheet

Inner Diameter
17
Weight
0,171
