52211 RICH 45x90x45 52211 RICH
zoom_out_map
52211 RICH 45x90x45 52211 RICH

52211 RICH 45x90x45

Type: Axial Deep Groove Ball Bearing (Double Direction)
Model: RICH 52211
Dimensions: 45 x 90 x 45 mm
Brand: RICH
Origin: China
RICH
52211
€6.90
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

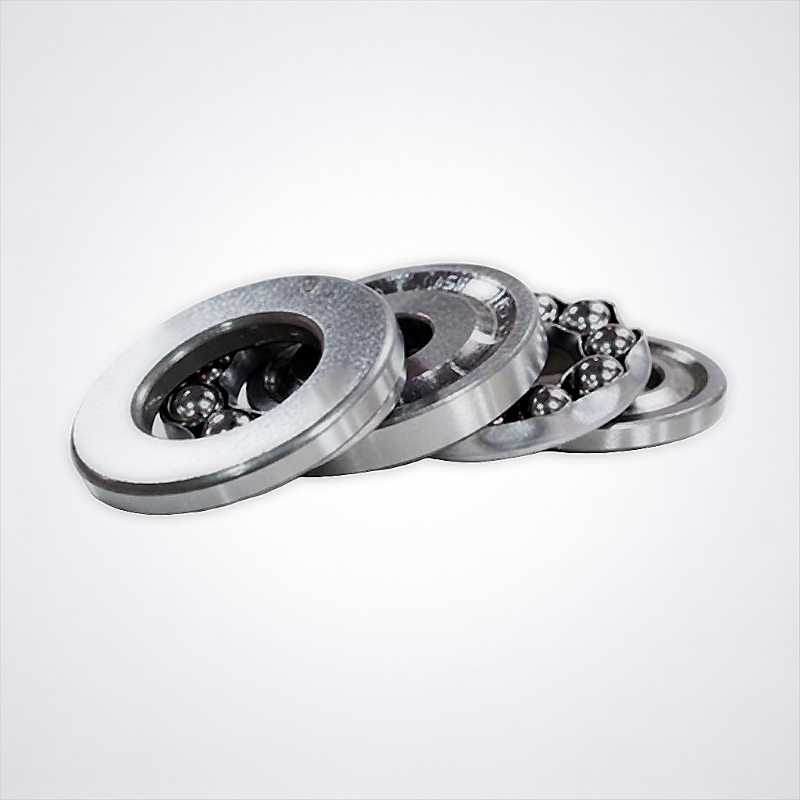

52211 RICH Axial Deep Groove Ball Bearing – 45 × 90 × 45 mm

Technical Specifications:

  • Brand: RICH
  • Type: Axial deep groove ball bearing
  • Model: 52211 RICH
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 90 mm
  • Height (H): 45 mm
  • Cage Material: Steel
  • Weight: 1.096 kg
  • Country of Origin: China

Performance Characteristics:

  • Load Profile: Double direction axial load support
  • Component Design: Five-piece separable assembly for bidirectional thrust
  • Raceway Geometry: Deep groove tracks for axial force transmission
  • Material Type: High-carbon chrome bearing steel
  • Assembly Interface: Double-acting thrust bearing arrangement

52211 RICH is a double direction axial deep groove ball bearing. Dimensional and structural characteristics correspond to the 45 × 90 × 45 mm specification.

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.

Data sheet

Inner Diameter
45
Outer Diameter
90
Width
45
Cage
Steel
Category
Axial Deep Groove Ball Bearing
