53209 U RICH 45x73x24

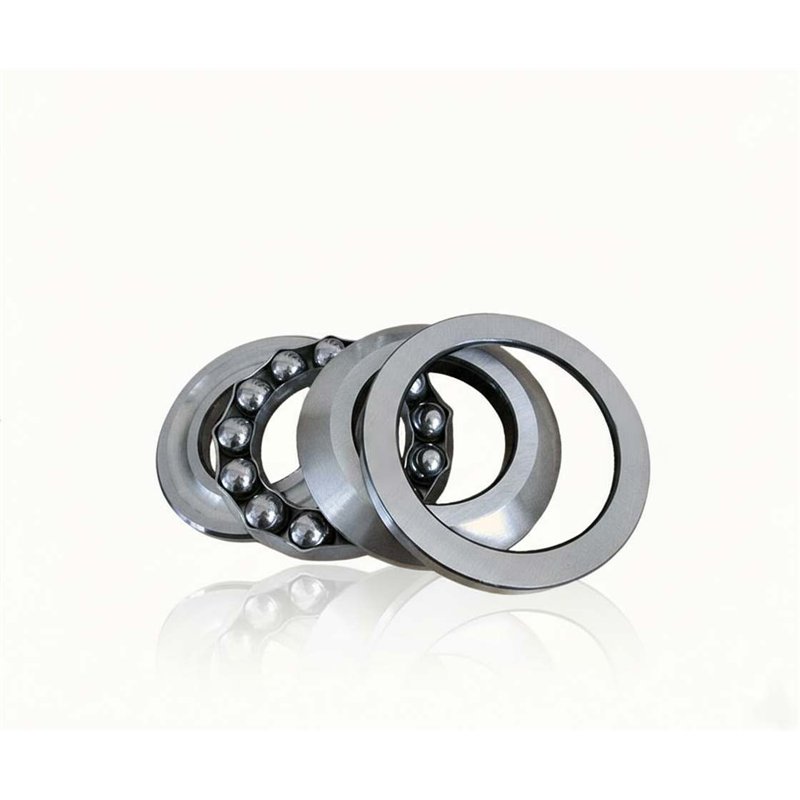

53209 U RICH Axial Deep Groove Ball Bearing – 45 × 73 × 24 mm

Technical Specifications:

• Brand: RICH
• Type: Axial deep groove ball bearing
• Model: 53209 U RICH
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 73 mm
• Height (H): 24 mm
• Components: Includes U-type spherical washer
• Cage Material: Steel
• Weight: 0.391 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Axial load configuration
• Alignment Feature: Spherical housing washer (U) for static misalignment compensation
• Component Design: Separable assembly with seating washer
• Material Type: High‑carbon chrome bearing steel
• Assembly Interface: Thrust bearing arrangement

53209 U RICH is an axial deep groove ball bearing equipped with a spherical housing washer. Dimensional and structural characteristics correspond to the 45 × 73 × 24 mm specification.

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
