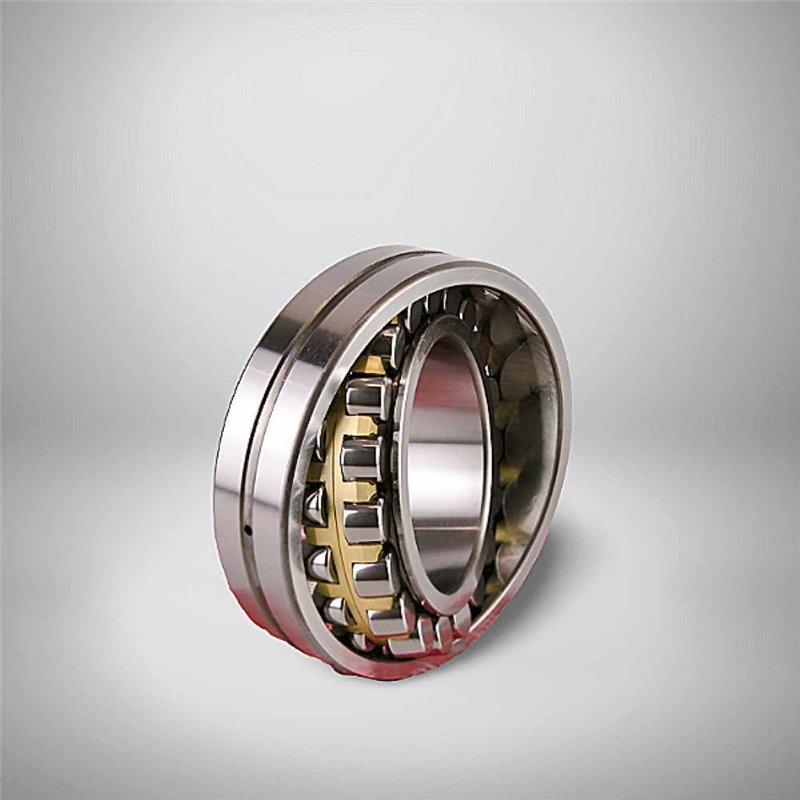

22208KMBW33 C3 RICH Spherical Roller Bearing - 40 x 80 x 23 mm
Technical Specifications:
- Brand: RICH
- Type: Spherical Roller Bearing
- Dimensions: 40 x 80 x 23 mm
- Cage: Brass, guided by the inner ring
- Clearance: C3 (Greater than Normal)
- Taper: 1:12
- Reinforced Execution: Yes (Lubrication groove and holes)
- Weight: 0.537 kg
- Country of Origin: China
The 22208KMBW33 C3 RICH is a high-performance spherical roller bearing designed to handle extremely heavy radial loads and accommodate significant misalignment between the shaft and housing. This bearing features a tapered bore (K) with a 1:12 taper, making it ideal for mounting on tapered shafts using an adapter sleeve for a secure and precise fit. The robust brass cage (M), guided by the inner ring, ensures durability and reliable operation under demanding conditions. The C3 internal clearance, which is greater than normal, makes the bearing suitable for applications involving high speeds or thermal expansion. Additionally, the reinforced design (W33) includes an annular groove and three lubrication holes in the outer ring, allowing for efficient re-greasing to extend service life. This RICH bearing is a dependable solution for heavy-duty industrial machinery.
Key Performance Advantages:
- High Load Capacity: Capable of withstanding very high radial loads and some axial loads.
- Accommodates Misalignment: The spherical design compensates for angular misalignment between the shaft and housing.
- Enhanced Durability: The robust brass cage ensures longevity and reliable performance.
- Tapered Bore: Allows for precise and secure mounting on a tapered shaft.
- Simplified Maintenance: The lubrication groove and holes facilitate easy and effective re-lubrication.
Data sheet
Inner Diameter
40
Outer Diameter
80
Width
23
Weight
0,537
Roller Rows
Double Row
Clearance
C3 (Greater than Normal)
