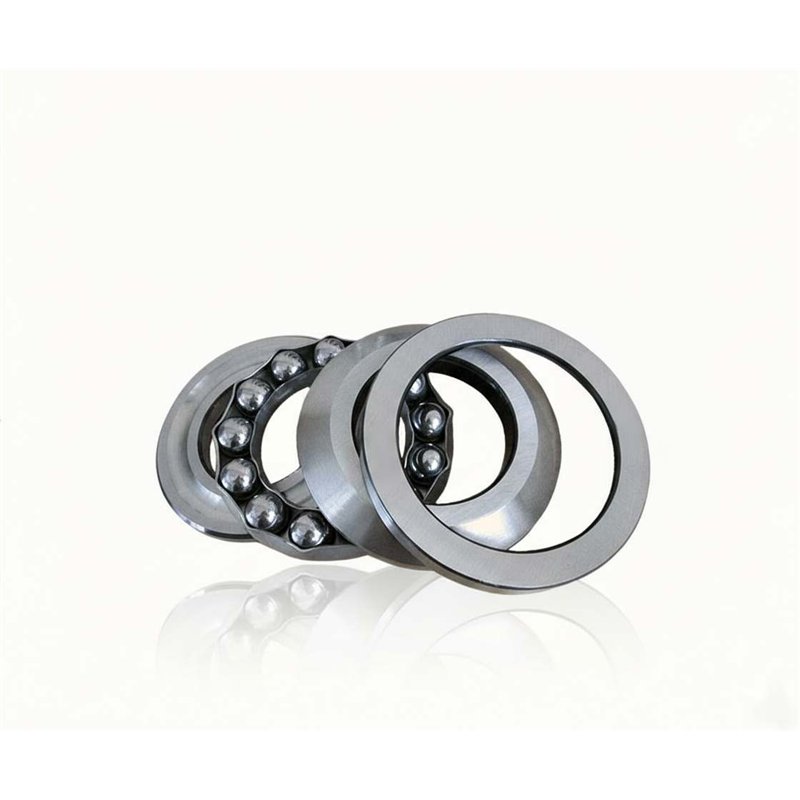

53307 U RICH Axial Deep Groove Ball Bearing – 35 × 68 × 28 mm
Technical Specifications:
- Brand: RICH
- Type: Axial deep groove ball bearing
- Model: 53307 U RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 68 mm
- Height (H): 28 mm
- Components: Includes U-type spherical washer
- Cage Material: Steel
- Weight: 0.47 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: High axial load configuration
- Alignment Feature: Spherical housing washer (U) for static misalignment compensation
- Component Design: Separable assembly with seating washer
- Material Type: High‑carbon chrome bearing steel
- Assembly Interface: Thrust bearing arrangement with self-aligning capability
53307 U RICH is an axial deep groove ball bearing equipped with a spherical housing washer. Dimensional and structural characteristics correspond to the 35 × 68 × 28 mm specification.
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
