CSA 201 RICH12x40x28,6 CSA201 RICH
search
  • CSA 201 RICH12x40x28,6 CSA201 RICH

CSA 201 RICH12x40x28,6

CSA 201 RICH Ball Bearing with Flat Outer Ring – dimensions 12 x 40 x 28.6 mm, weight 0.136 kg. Cylindrical outer ring, clearance C3, double-sided rubber contact seals. Ensures higher speed capacity, dust protection, and long service life.

RICH
CSA201
€2.91
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

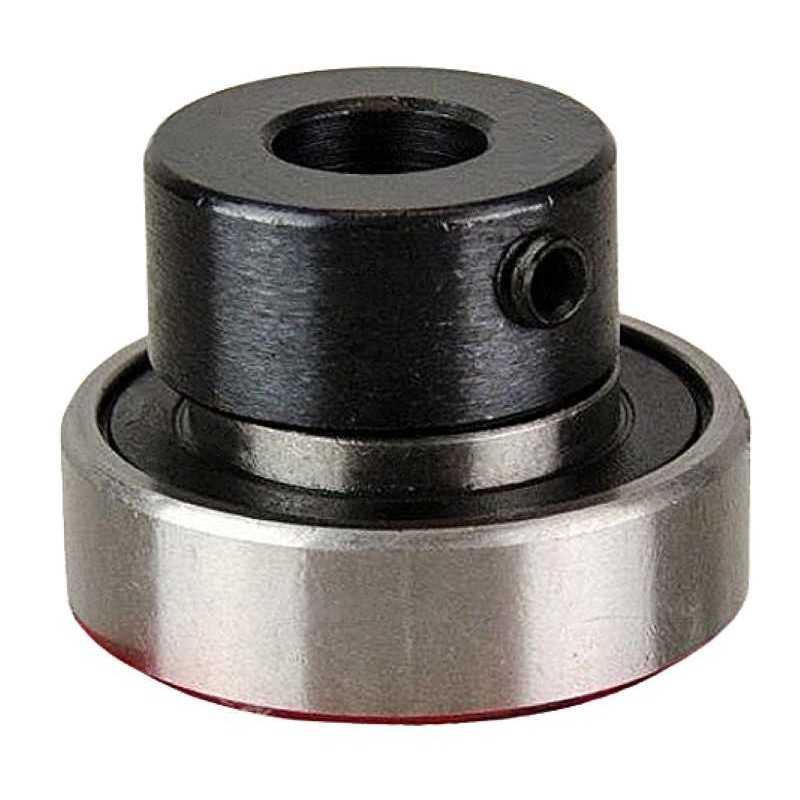

CSA 201 RICH | Ball Bearing with Flat Outer Ring – 12 x 40 x 28.6 mm

Technical Specifications:

  • Catalog Code: CSA 201 RICH
  • Brand: RICH
  • Bearing Type: Ball Bearing with Flat Outer Ring
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 40 mm
  • Total Width (T): 28.6 mm
  • Inner Ring Width: 23.8 mm
  • Outer Ring Width (C): 12 mm (insert bearing)
  • Outer Ring Profile: Cylindrical (not rounded)
  • Clearance: C3 – greater than normal
  • Weight: 0.136 kg
  • Sealing: Double-sided rubber, contact type
  • Country of Origin: China

Key Performance Advantages:

  • Flat Outer Ring: Cylindrical profile for secure seating in housings.
  • Greater Clearance (C3): Allows higher speed and thermal expansion without risk of seizure.
  • Double Rubber Seals: Contact type sealing ensures protection against contaminants and reliable grease retention.
  • Optimized Dimensions: 12 mm bore, 40 mm outer diameter, 28.6 mm total width.
  • Insert Bearing Execution: Outer ring width 12 mm, designed for mounting in flat housings.
  • RICH Quality: Precision manufactured for durability and consistent performance.

Transparency Note: This ball bearing with flat outer ring is manufactured directly under the RICH brand. The catalog code CSA 201 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
12
Outer Diameter
40
Width
28,6
Clearance
C3 (Greater than Normal)
Category
Ball Bearing with Flat Outer Ring
