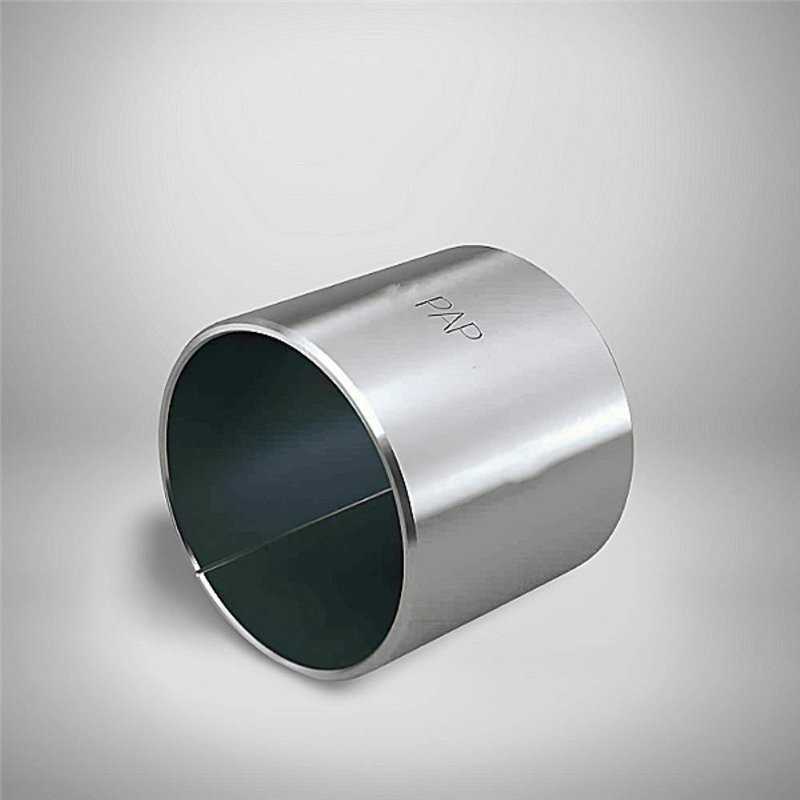

PAP 1015 P10 RICH Thin Wall Bush - 10 x 12 x 15 mm
Technical Specifications:
- Catalog Code: PAP 1015 P10 RICH
- Brand: RICH
- Type: Thin wall dry sliding bush
- Dimensions: 10 x 12 x 15 mm
- Inner Diameter (d): 10 mm
- Outer Diameter (D): 12 mm
- Width (L): 15 mm
- Material: PTFE on steel back (DU series)
- Lubrication: Self-lubricating (Maintenance-free)
- Weight: 0.004 kg
- Country of Origin: China
Key Performance Advantages:
- Maintenance-Free Operation: The PTFE-based sliding layer allows for dry operation without the need for additional grease or oil, making it ideal for clean environments.
- Composite Durability: Combines the high load-carrying capacity of a steel backing with the low friction properties of a PTFE/lead or plastic sliding surface.
- Compact Profile: The thin wall construction enables efficient space-saving designs in high-precision medical, textile, and electronic equipment.
- Wide Temperature Range: Engineered to perform reliably across a broad range of operating temperatures while maintaining a low coefficient of friction.
Transparency Note: This product is manufactured under the RICH brand. The code PAP 1015 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
