FB092 25x28x25 RICH 25x28x25 FB09225x28x25 RICH
zoom_out_map
FB092 25x28x25 RICH 25x28x25 FB09225x28x25 RICH

FB092 25x28x25 RICH 25x28x25

Type: Thin Wall Bronze Bush
Model: FB092 25x28x25 RICH
Bore: 25 mm
Material: CuSn8 Bronze with Grease Holes
Brand: RICH
Origin: China
RICH
FB09225x28x25
€2.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

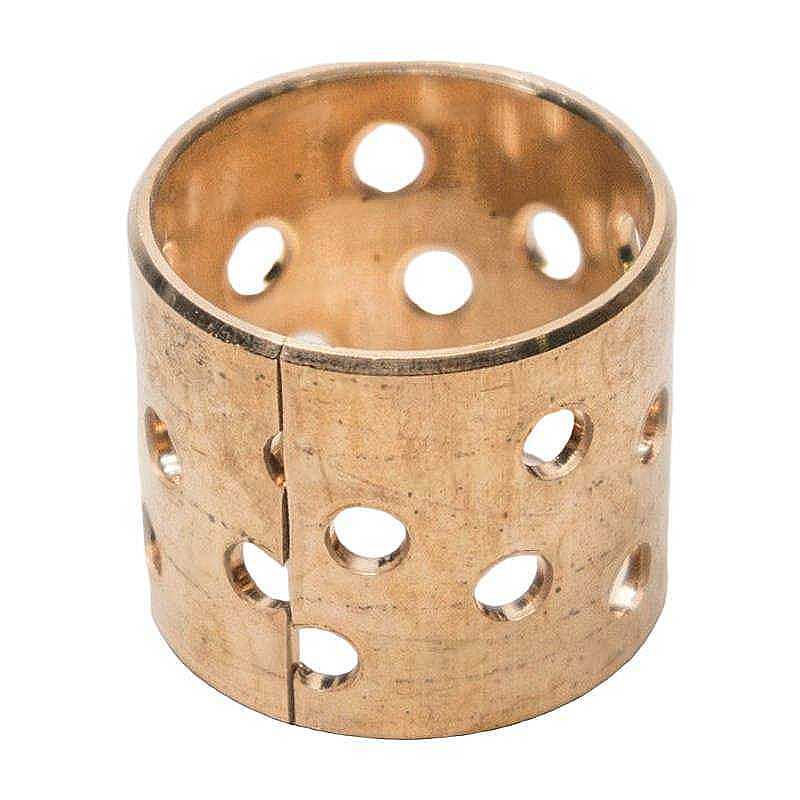

FB092 25x28x25 RICH Thin Wall Bronze Bush - 25 x 28 x 25 mm

Technical Specifications:

  • Catalog Code: FB092 25x28x25 RICH
  • Brand: RICH
  • Type: Thin wall wrapped bronze bush
  • Dimensions: 25 x 28 x 25 mm
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 28 mm
  • Width (L): 25 mm
  • Material: CuSn8 bronze (Self-lubricating with grease holes)
  • Weight: 0.024 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Density Bronze Material: Manufactured from CuSn8 wrapped bronze, offering exceptional hardness and wear resistance for heavy-duty industrial environments.
  • Integrated Lubrication Reservoirs: The inner surface is embossed with diamond-shaped grease holes, which store lubricant to ensure consistent self-lubrication and reduced friction during operation.
  • Extreme Load Support: Specifically designed for low-speed, high-load applications where thin wall components are required to maximize housing space.
  • Reliable Performance: Excellent thermal conductivity and corrosion resistance ensure stable performance in agricultural, construction, and material handling machinery.

Transparency Note: This product is manufactured under the RICH brand. The code FB092 25x28x25 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
28
Width
25
Weight
0,024
Category
Thin Wall Bronze Bush
