UC314 RICH 70x150x78

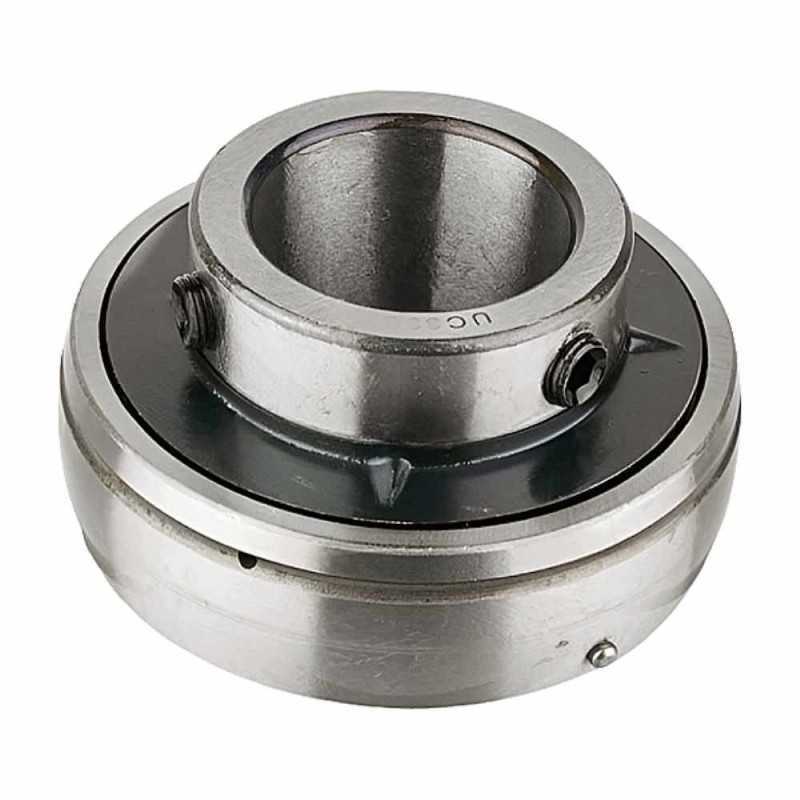

UC314 RICH – Insert Ball Bearing – 70 × 150 × 78 mm

Technical Specifications:

• Type: Insert ball bearing
• Brand: RICH
• Model Designation: UC314
• Inner Diameter (d): 70 mm
• Outer Diameter (D): 150 mm
• Inner Ring Width (B): 78 mm
• Outer Ring Width (C): 41 mm
• Outer Ring Shape: Spherical (Rounded)
• Sealing: Double-sided lip seal with protective plate
• Weight: 3.779 kg
• Country of Origin: China

Construction Features:

• Spherical Outer Ring: Designed with a rounded outer diameter to fit perfectly into compatible housings, allowing for self-alignment and compensation for shaft deflection.
• Extended Inner Ring: Features a wide inner ring (78 mm) that provide enhanced support on the shaft and facilitates secure locking via set screws.
• Heavy-Duty 300 Series: Engineered for demanding industrial applications, this UC314 insert is built to sustain higher radial loads compared to standard-duty variants.
• Reinforced Sealing: Equipped with a double-sided lip seal protected by a metal plate to prevent grease leakage and shield the internal components from harsh contaminants.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
