NATR 12 PP RICH 12x32x15

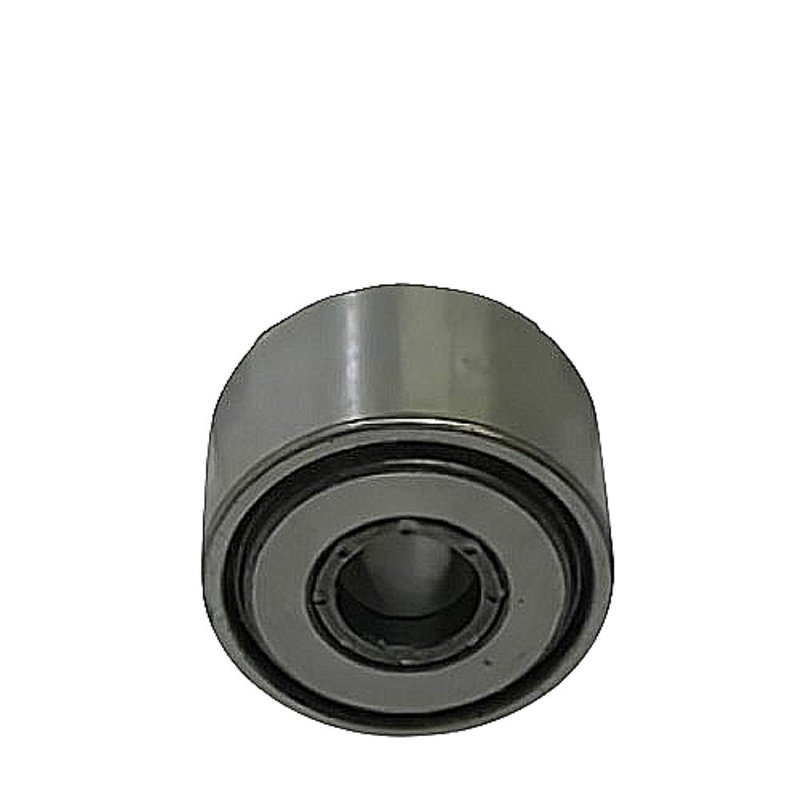

NATR12.PP RICH Yoke Roller – 12 x 32 x 15 mm – Rounded Outer Ring, Double-Sided Sealed

Discover the robust reliability of the NATR12.PP RICH yoke roller, a precision-engineered component crafted for exceptional performance in a wide array of cam and track follower applications. Proudly manufactured by RICH in China, this high-quality roller features a rounded (crowned) outer ring profile. This design is specifically optimized to effectively accommodate minor misalignments and distribute loads evenly, significantly reducing stress concentrations on both the roller and its mating track, thereby ensuring extended operational life and smoother movement in dynamic systems.

Engineered for durability and minimal maintenance, the NATR12.PP RICH yoke roller incorporates a resilient steel cage for precise roller guidance and an advanced double-sided rubber contact sealing system. These highly effective seals create a robust barrier against the ingress of dust, moisture, and other contaminants, while simultaneously retaining internal lubrication. This superior protection translates into significantly extended service intervals and consistent, high-performance operation. With precise dimensions of a 12 mm bore diameter, a 32 mm outer diameter, a 15 mm width, and an outer ring width (C) of 14 mm, and weighing 0.066 kg, this RICH yoke roller is an ideal solution for demanding industrial and mechanical environments where reliability and long service life are paramount.

Key Specifications:

• Type: Yoke Roller
• Brand: RICH
• Model Designation: NATR12.PP
• Dimensions: 12 mm bore diameter x 32 mm outer diameter x 15 mm width
• Weight: 0.066 kg
• Outer Ring Width (C): 14 mm
• Cage Material: Steel
• Outer Ring Profile: Rounded (Crowned)
• Sealing: Double-sided rubber, contact
• Country of Origin: China

Key Advantages:

• Optimized rounded outer ring profile enhances performance by compensating for misalignments and preventing edge loading.
• Equipped with highly effective double-sided rubber contact seals for superior protection against contaminants, extending lubrication life.
• Manufactured by RICH in China, ensuring consistent high quality and manufacturing excellence.
• Robust steel cage design provides enhanced durability and stability under varying loads.
• Designed for a wide range of industrial and mechanical applications, offering reliable linear guidance and cam following capabilities.
