UCP211-35 RICH UCP211-35 RICH
zoom_out_map
UCP211-35 RICH UCP211-35 RICH

UCP211-35 RICH

Type: Cast Iron Bearing Unit (Pillow Block)
Model: RICH UCP211-35
Bore Diameter: 55.563 mm
Brand: RICH
Origin: China
RICH
UCP211-35
€8.64
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

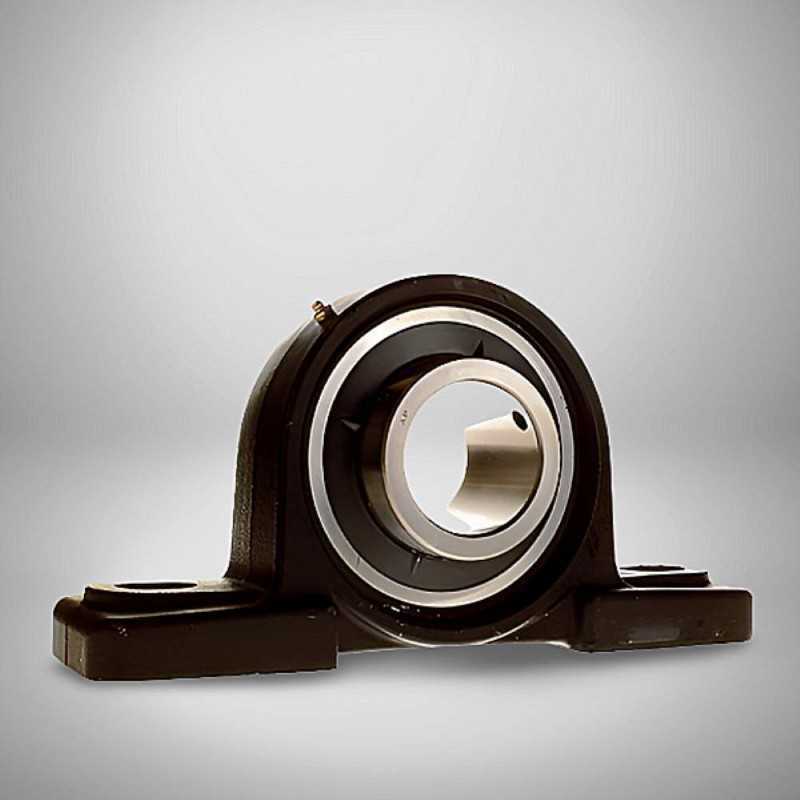

UCP211-35 RICH Cast Iron Bearing Unit – 55.563 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast iron bearing unit (Pillow block)
  • Model: UCP211-35 RICH
  • Bore Diameter (d): 55.563 mm
  • Overall Length (L): 219 mm
  • Mounting Hole Distance (J): 171 mm
  • Center Height (F): 63.5 mm
  • Total Height (F2): 126 mm
  • Housing Width (A): 60 mm
  • Housing Base Width (A1): 40 mm
  • Housing Material: Cast iron
  • Insert Type: UC-series bearing
  • Weight: 2.89 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Pillow block housing with UC-series insert bearing.
  • Internal Geometry: Spherical outer ring design for shaft misalignment compensation.
  • Material Type: Cast iron housing with steel insert bearing.
  • Sealing System: Contact seals on the insert bearing.
  • Lubrication: Pre-lubricated insert with grease nipple.
  • Dimensional Format: 55.563 mm bore; pillow block configuration.

Transparency Note: This bearing unit is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
55,563
