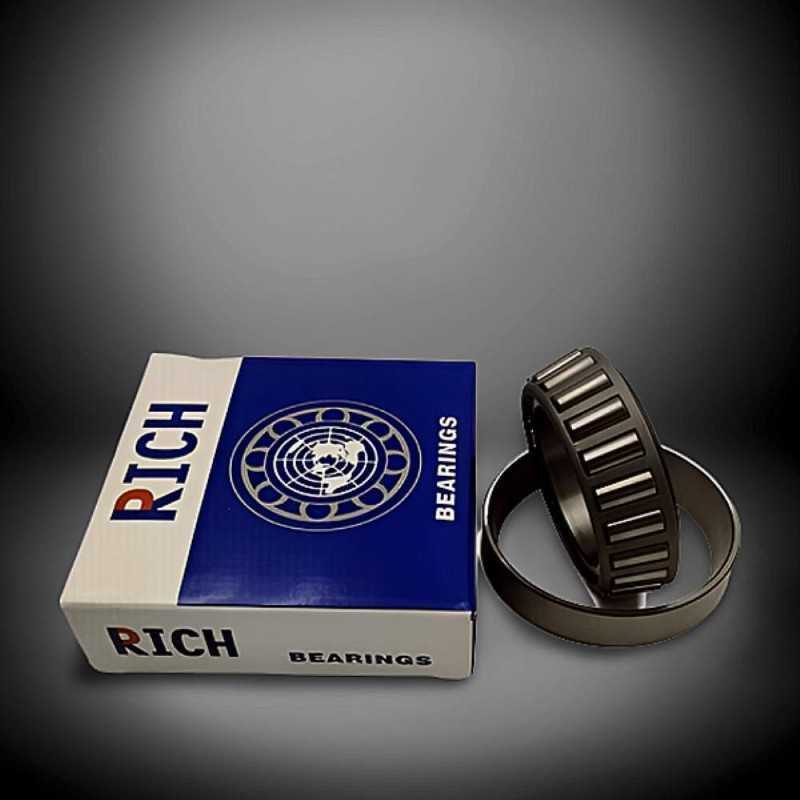

23256/23100 RICH Single Row Tapered Roller Bearing - 25.4 x 65.088 x 22.225 mm
The 23256/23100 RICH is a single row tapered roller bearing designed to accommodate combined radial and axial loads. This bearing has key dimensions of 25.4 mm inner diameter, 65.088 mm outer diameter, and a width (T) of 22.225 mm. The outer ring width (C) is 15.875 mm and the inner ring width is 21.463 mm. It weighs 0.36 kg and is made in China. This bearing type, with its tapered rollers and conical raceways, is well-suited for applications requiring support for both high radial and axial loads in one direction. Due to its internal construction, single row tapered roller bearings are typically mounted in pairs with a second tapered roller bearing.
Key Specifications:
- Bearing Type: Single Row Tapered Roller Bearing
- Model:** 23256/23100 RICH
- Inner Diameter (d):** 25.4 mm
- Outer Diameter (D):** 65.088 mm
- Width (T):** 22.225 mm
- Outer Ring Width (C):** 15.875 mm
- Inner Ring Width:** 21.463 mm
- Weight:** 0.36 kg
- Country of Origin:** China
Key Features:
- Tapered Roller Design:** Optimized for combined radial and axial loads.
- Separable Components:** The inner ring assembly (cone) and outer ring (cup) can be mounted separately.
- Adjustable Clearance:** The axial clearance can be adjusted during mounting.
- Robust Construction:** Capable of withstanding significant forces.
- Versatile Application:** Used in various applications requiring combined load support. Typically used in pairs.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
25,4
Outer Diameter
65,088
Width
22,225
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
