Type: Pillow Block Unit
Model: UP000 RICH
Bore: 10 mm
Housing: Zinc Alloy
Brand: RICH
Origin: China
RICH
UP000
€2.48
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

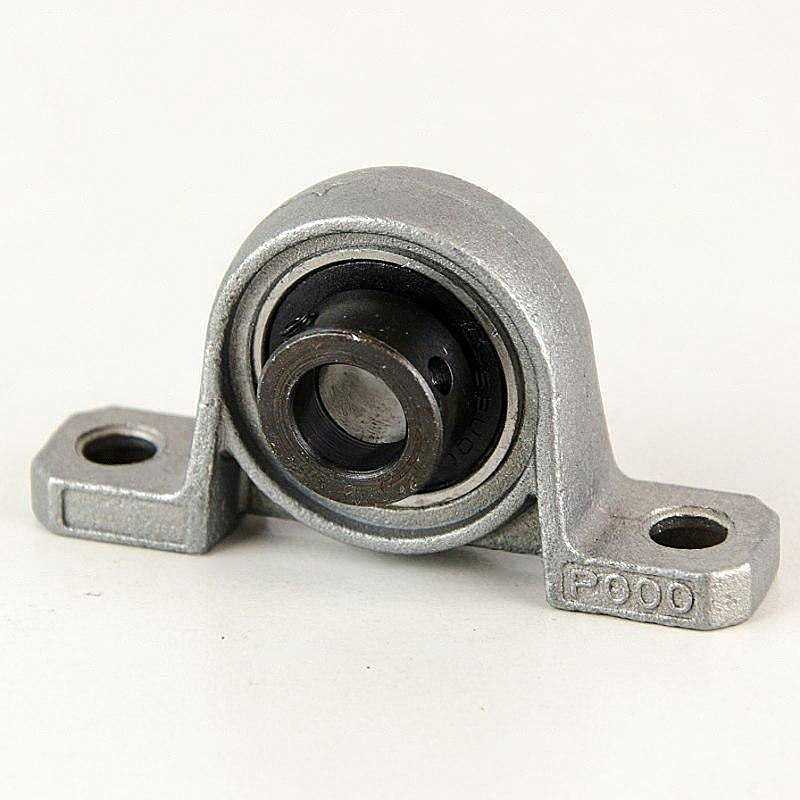

UP000 RICH Pillow Block with Zinc Alloy Housing - 10 mm Bore

Technical Specifications:

  • Catalog Code: UP000 RICH
  • Brand: RICH
  • Type: Pillow block bearing unit
  • Shaft Diameter (d): 10 mm
  • Housing Material: Zinc Alloy (Zamac)
  • Total Length (L): 67 mm
  • Mounting Hole Distance (J): 53 mm
  • Housing Width (A): 16 mm
  • Center Height (F): 18 mm
  • Total Height (F2): 35 mm
  • Mounting Bolt Size (N): 7 mm
  • Weight: 0.076 kg
  • Country of Origin: China

Key Performance Advantages:

  • Corrosion-Resistant Zinc Alloy: The housing is cast from high-grade zinc alloy, providing excellent resistance to oxidation and corrosion compared to standard cast iron units.
  • Compact & Lightweight Design: Weighing only 0.076 kg, this unit is ideal for small-scale machinery, medical equipment, and precision laboratory instruments where space is limited.
  • Self-Aligning Capability: The internal bearing insert can pivot within the housing to compensate for moderate shaft misalignments, ensuring smooth rotation and reduced wear.
  • Easy Installation: Two pre-drilled 7 mm mounting holes allow for quick and secure fastening to flat surfaces using standard bolts.

Transparency Note: This product is manufactured under the RICH brand. The code UP000 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
10
