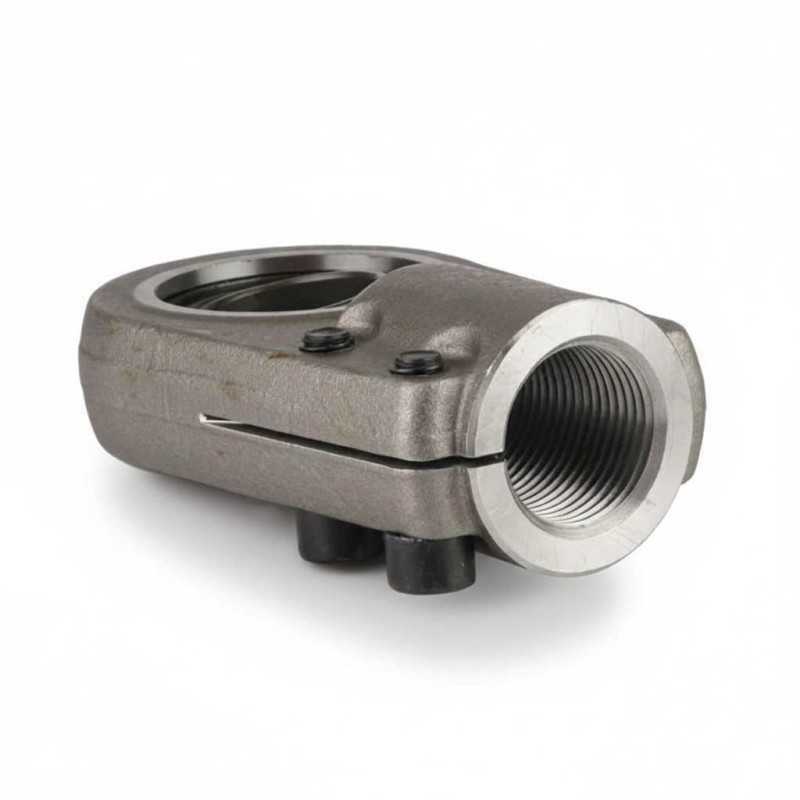

RFMA 40 RICH – Rod End | Thread Size: M35x1.5 FMA40D RICH
zoom_out_map
RFMA 40 RICH – Rod End | Thread Size: M35x1.5 FMA40D RICH

RFMA 40 RICH – Rod End | Thread Size: M35x1.5

Type: Hydraulic Rod End (Regreasable)
Model: RFMA 40 RICH
Dimensions: 40 mm Bore x 105 mm Height
Material: Spheroidal Cast Iron / Steel
Brand: RICH
Origin: China
RICH
FMA40D
€24.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RFMA 40 RICH – Rod End – 40 x 94 x 105 mm

Technical Specifications:

  • Type: Rod end for hydraulic cylinders (Regreasable configuration)
  • Brand: RICH
  • Model Designation: RFMA 40
  • Inner Diameter (d): 40 mm
  • Outer Diameter (A): 94 mm
  • Height to Axis (F): 105 mm
  • Thread Size: M35x1.5
  • Thread Length (GL): 55 mm
  • Outer Ring Width (C): 35 mm
  • Inner Ring Width: 28 mm
  • Friction Pair: Steel/Steel
  • Housing Material: Spheroidal cast iron
  • Fastening: Hexagon socket head cap screws (DIN 912-8.8)
  • Weight: 2.519 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Specialized rod end housing manufactured from spheroidal cast iron, designed for integration with double-action hydraulic cylinders.
  • Fastening Mechanism: Features a split housing design secured by hexagon socket head cap screws according to DIN 912-8.8 standards.
  • Sliding Configuration: Equipped with a regreasable spherical plain bearing utilizing a steel-on-steel friction pair, secured via snap rings.
  • Dimensional Format: Robust technical profile optimized for high-load hydraulic applications.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Category
Rod End
