PFL206 RICH

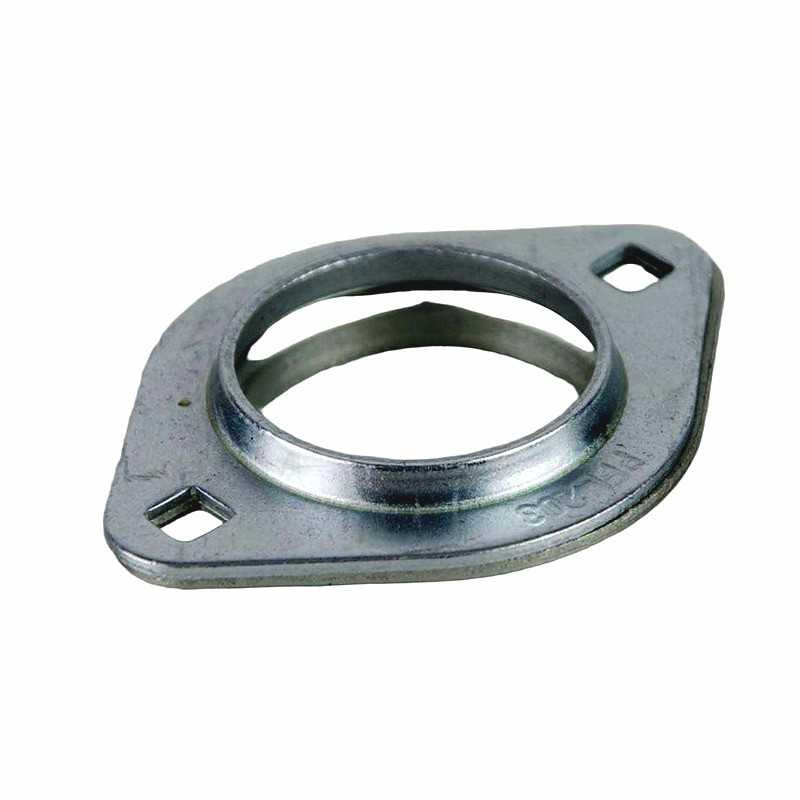

PFL206 RICH Pressed Steel Oval Flange Housing - 112.7 mm Length

Technical Specifications:

• Catalog Code: PFL206 RICH
• Brand: RICH
• Type: Pressed steel housing (Two-piece oval flange)
• Total Length (L): 112.7 mm
• Bolt Hole Distance (J): 90.5 mm
• Housing Width (L2): 84 mm
• Flange Thickness (A1): 5 mm
• Total Width (A): 9 mm
• Bolt Hole Size (N): 10.5 mm
• Weight: 0.183 kg
• Country of Origin: China

Product Overview:

The PFL206 RICH is a lightweight, two-bolt oval flange housing expertly crafted from high-quality pressed steel. Designed to accommodate 206 series insert bearings, which typically feature a 30 mm bore, this housing offers a space-saving and efficient mounting solution for a variety of mechanical applications. The PFL series is characterized by its slim, two-piece stamped steel construction that securely encapsulates the bearing, providing necessary structural support without the bulk of cast iron alternatives. The internal geometry is spherically shaped, allowing the inserted bearing to self-align and successfully compensate for minor shaft deflections or mounting inaccuracies. With a total length of 112.7 mm and a bolt hole distance of 90.5 mm, it is a versatile component widely utilized in light-duty conveyors, agricultural equipment, and specialized industrial fans where weight reduction and compact dimensions are essential for optimal performance.

Key Performance Advantages:

• Ultra-Slim Oval Design: Perfect for installations with limited mounting space, providing a secure two-bolt anchor point.
• Self-Alignment Support: Supports the swiveling motion of spherical insert bearings to reduce internal friction and prevent premature wear.
• Lightweight Efficiency: At only 0.183 kg, it minimizes the overall mass of the assembly, ideal for portable or light-duty machinery.
• Durable Protection: Manufactured from high-tensile steel with a protective finish for reliable service in standard industrial environments.

Transparency Note: This housing is manufactured under the RICH brand. The code PFL206 is used for identification purposes and does not imply affiliation with other manufacturers.
