UCP 320 RICH

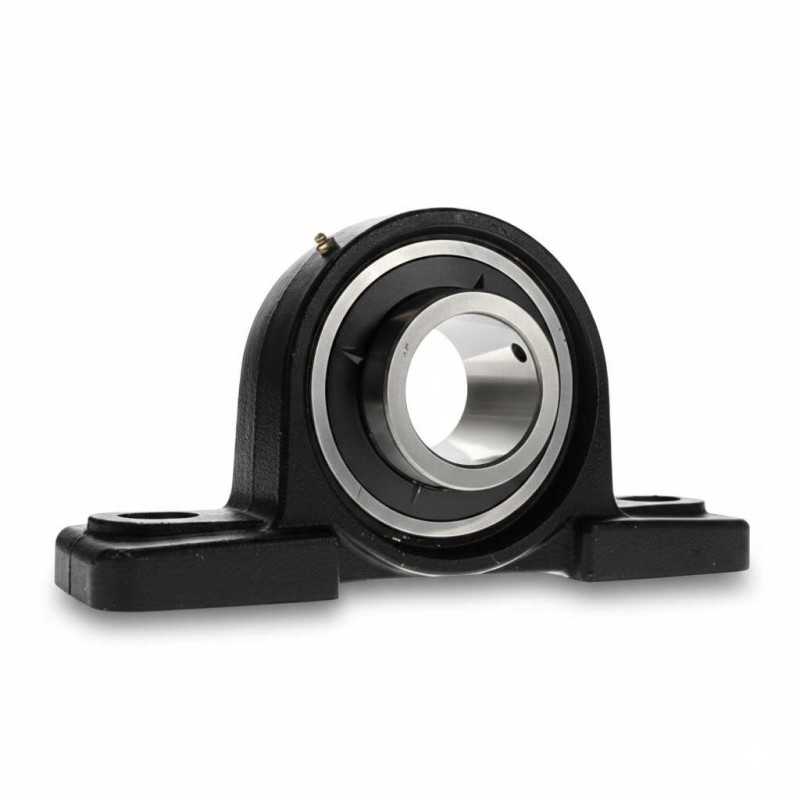

UCP 320 RICH – Cast Iron Pillow Block Bearing Unit – 100 mm Bore

Technical Specifications:

• Type: Cast iron pillow block bearing unit
• Brand: RICH
• Model Designation: UCP 320
• Shaft Diameter (d): 100 mm
• Base to Center Height (F): 140 mm
• Overall Length (L): 490 mm
• Mounting Hole Distance (J): 380 mm
• Overall Height (F2): 275 mm
• Housing Base Width (A): 120 mm
• Housing Base Height (A1): 81 mm
• Mounting Bolt Hole (N): 36 mm
• Housing Material: High-strength cast iron
• Weight: 26.715 kg
• Country of Origin: China

Construction Features:

• Heavy-Duty 300 Series: Engineered for the most demanding industrial environments, this unit belongs to the heavy-duty 300 series, offering significantly higher load ratings than standard pillow blocks.
• Rigid Pillow Block Housing: The massive cast iron pedestal provides exceptional structural integrity and vibration dampening, ensuring stable support for 100 mm shafts.
• Spherical Insert Bearing: Features a self-aligning ball bearing insert that accommodates initial mounting inaccuracies and shaft deflection during operation.
• Robust Lubrication System: Equipped with a factory-installed grease nipple for easy maintenance, ensuring the longevity of the rolling elements under continuous high-load cycles.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
