UCF 211-32 RICH

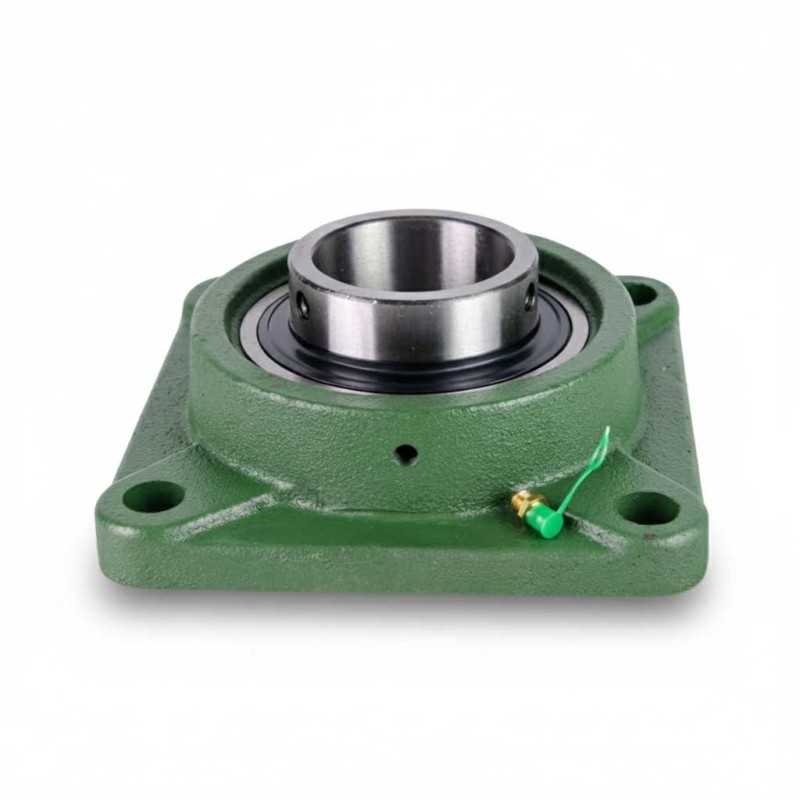

UCF 211-32 RICH – Cast Iron Flange Bearing Unit – 50.8 mm (2") Bore

Technical Specifications:

• Type: Cast iron flange bearing unit
• Brand: RICH
• Model Designation: UCF 211-32
• Shaft Diameter (d): 50.8 mm (2 inch)
• Housing Length (L): 162 mm
• Mounting Hole Distance (J): 130 mm
• Housing Width (A): 43 mm
• Flange Thickness (A1): 18 mm
• Mounting Hole Diameter (N): 19 mm
• Housing Material: Rigid cast iron
• Weight: 2.81 kg
• Country of Origin: China

Construction Features:

• Inch-Series Specification: This unit is precision-engineered for 2-inch (50.8 mm) shafts, providing a perfect fit for systems utilizing imperial dimensioning.
• Robust 4-Hole Flange: The square cast iron housing provides a high degree of structural integrity, ensuring a stable and secure mounting point for heavy-duty industrial machinery.
• Self-Aligning Capability: Features a spherical-seated bearing insert that effectively compensates for static shaft misalignment, reducing internal stress and extending operational life.
• Contaminant Resistance: Integrated with high-quality seals designed to lock in lubrication and block out dust and grit, making it suitable for conveyors, fans, and agricultural equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
