2315 M K C3 RICH 75x160x55

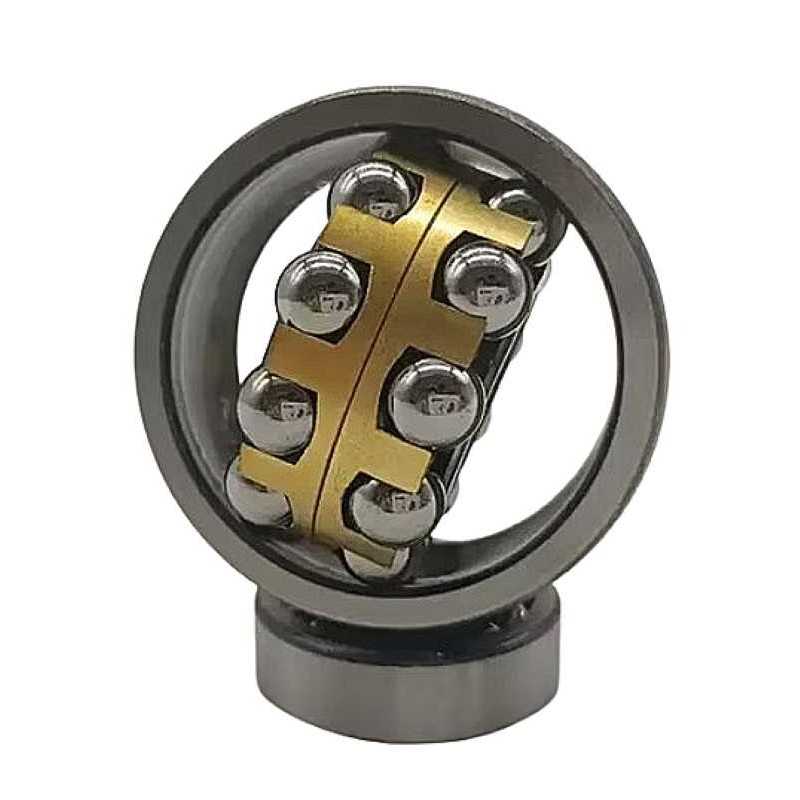

2315.M.K.C3 RICH Self-Aligning Ball Bearing – dimensions 75 x 160 x 55 mm, brass cage guided by rolling elements, weight 4.994 kg. C3 clearance and tapered bore 1:12 ensure misalignment compensation, high speed capability, and long service life.
2315.M.K.C3 RICH | Self-Aligning Ball Bearing – 75 x 160 x 55 mm
Technical Specifications:
- Catalog Code: 2315.M.K.C3 RICH
- Brand: RICH
- Bearing Type: Self-Aligning Ball Bearing
- Inner Diameter (d): 75 mm
- Outer Diameter (D): 160 mm
- Width (B): 55 mm
- Weight: 4.994 kg
- Cage: Brass, guided by the rolling elements
- Clearance: C3 – greater than normal
- Sealing: None
- Taper: 1:12
- Country of Origin: China
Key Performance Advantages:
- Self-Aligning Design: Automatically compensates for shaft misalignment relative to the housing.
- C3 Clearance: Greater than normal clearance for higher speed and thermal expansion tolerance.
- Brass Cage: Guided by rolling elements for stability and long service life.
- Tapered Bore (1:12): Facilitates mounting on adapter sleeves or tapered shafts.
- High Load Capacity: Suitable for both radial and moderate axial loads.
- Optimized Dimensions: 75 mm bore, 160 mm outer diameter, 55 mm width.
- RICH Quality: Precision manufactured for reliability and consistent performance.
Transparency Note: This self-aligning ball bearing is manufactured directly under the RICH brand. The catalog code 2315.M.K.C3 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.
Data sheet
Inner Diameter
75
Outer Diameter
160
Width
55
Weight
4,94
Ball Rows
Double Row
Cage
Brass
Clearance
C3 (Greater than Normal)
