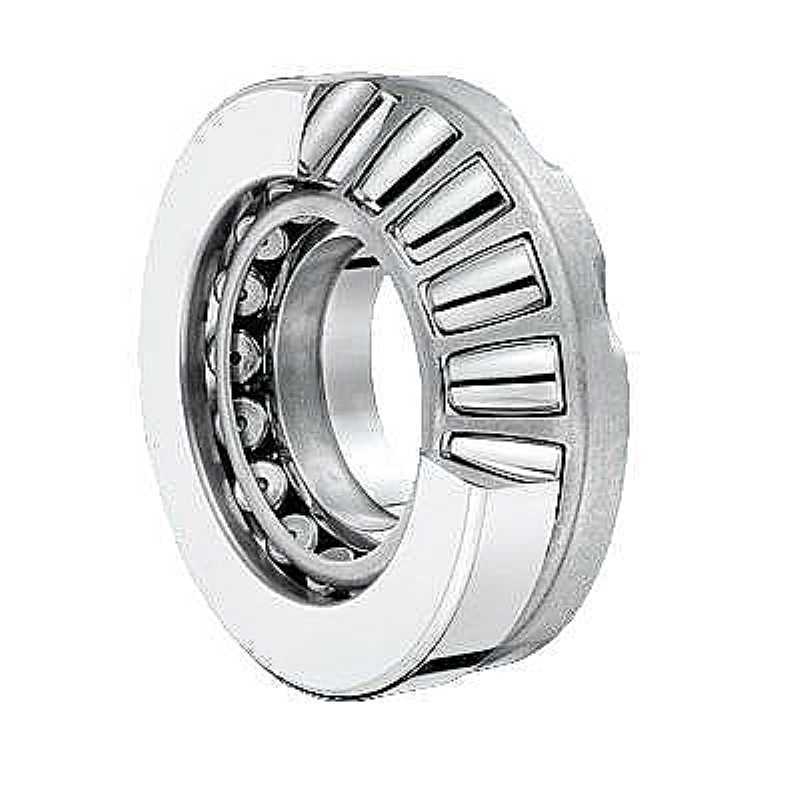

29424 E RICH 120x250x78 29424E RICH
zoom_out_map
29424 E RICH 120x250x78 29424E RICH

29424 E RICH 120x250x78

Type: Spherical Roller Thrust Bearing
Model: 29424.E RICH
Dimensions: 120 x 250 x 78 mm
Execution: Reinforced (E)
Brand: RICH
Origin: China
RICH
29424E
€153.78
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

29424.E RICH Spherical Roller Thrust Bearing - 120 x 250 x 78 mm

Technical Specifications:

  • Catalog Code: 29424.E RICH
  • Brand: RICH
  • Type: Spherical roller thrust bearing
  • Bore Diameter (d): 120 mm
  • Outer Diameter (D): 250 mm
  • Total Height (T): 78 mm
  • Inner Ring Width (T3): 50.5 mm
  • Outer Ring Width (T1): 36.5 mm
  • Cage: High-strength Steel
  • Execution: E (Reinforced execution for maximum load rating)
  • Weight: 16.57 kg
  • Country of Origin: China

Product Overview:

The 29424.E RICH is a powerhouse spherical roller thrust bearing designed to meet the most rigorous demands of heavy industry. Featuring a 120 mm bore and a massive 250 mm outer diameter, this bearing is built with the "E" reinforced execution, which incorporates an optimized internal geometry and a larger set of rollers to provide the highest possible load-carrying capacity. The design allows it to sustain immense axial loads in a single direction while simultaneously managing moderate radial forces. A key advantage of the 29424 series is its inherent self-aligning capability; the spherical raceways enable the bearing to adjust to angular misalignments or shaft deflections without generating excessive friction or heat. Equipped with a robust steel cage for structural integrity, this bearing is an essential component for critical machinery such as large extruders, vertical dredging pumps, hydroelectric generators, and heavy-duty gearboxes where high-performance reliability is the primary requirement.

Key Performance Advantages:

  • Maximum Load Performance: The reinforced "E" design offers superior static and dynamic load ratings for high-stress applications.
  • Self-Aligning Design: Effortlessly compensates for angular errors between the shaft and housing, preventing premature mechanical failure.
  • High Axial Thrust Capacity: Engineered specifically for heavy vertical shaft loads or high-pressure thrust scenarios.
  • Robust Steel Cage: Provides excellent durability and roller guidance, ensuring consistent operation under high-load conditions.

Transparency Note: This bearing is manufactured under the RICH brand. The code 29424.E is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
120
Outer Diameter
250
Width
78
Cage
Steel
