PFL208 RICH PFL208 RICH
zoom_out_map
PFL208 RICH PFL208 RICH

PFL208 RICH

Type: Pressed Steel Oval Flange Housing
Model: PFL208 RICH
Bolt Hole Distance: 119 mm
Total Length (L): 151 mm
Brand: RICH
Origin: China
RICH
PFL208
€2.74
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

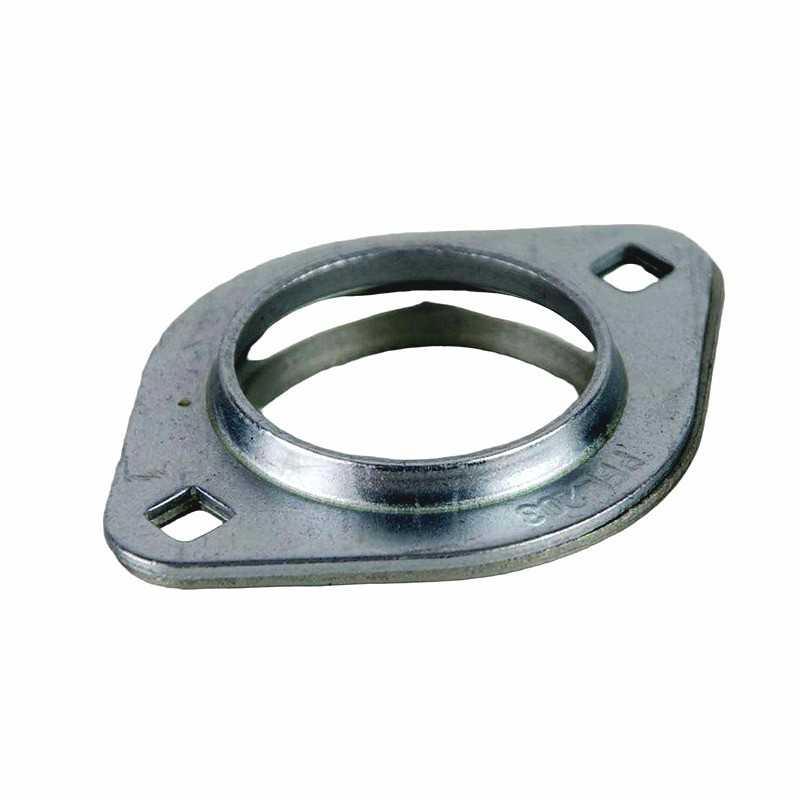

PFL208 RICH Pressed Steel Oval Flange Housing - 151 mm Length

Technical Specifications:

  • Catalog Code: PFL208 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece oval flange)
  • Total Length (L): 151 mm
  • Bolt Hole Distance (J): 119 mm
  • Housing Width (L2): 100 mm
  • Flange Thickness (A): 7 mm
  • Total Width (A1): 11.5 mm
  • Bolt Hole Size (N): 13.5 mm
  • Weight: 0.41 kg
  • Country of Origin: China

Product Overview:

The PFL208 RICH is a robust, two-bolt oval flange housing expertly stamped from high-strength pressed steel. Engineered to accommodate 208 series insert bearings (typically featuring a 40 mm bore), this housing provides a lightweight and space-efficient alternative to traditional cast iron units. The two-piece construction allows for easy assembly and maintenance, securely clamping the bearing while maintaining a slim profile. The internal seat of the housing is spherically contoured, enabling the inserted bearing to self-align and successfully compensate for minor shaft deflections or mounting inaccuracies. Weighing only 0.41 kg, the PFL208 is widely utilized in medium-duty conveyors, agricultural equipment, and specialized industrial fans where a high strength-to-weight ratio is essential for performance and ease of installation.

Key Performance Advantages:

  • Compact Oval Configuration: The two-bolt mounting pattern is ideal for restricted spaces where a square flange would be too large.
  • Self-Alignment Support: Supports the swiveling motion of spherical insert bearings to ensure smooth shaft rotation and reduce internal stress.
  • Durable Construction: Manufactured from high-tensile steel with a protective finish for reliable service in varied industrial environments.
  • Simplified Maintenance: The interlocking two-piece design allows for rapid bearing inspection and replacement.

Transparency Note: This housing is manufactured under the RICH brand. The code PFL208 is used for identification purposes and does not imply affiliation with other manufacturers.
