  • CSA 205 RICH 25x52x15 CSA205 RICH

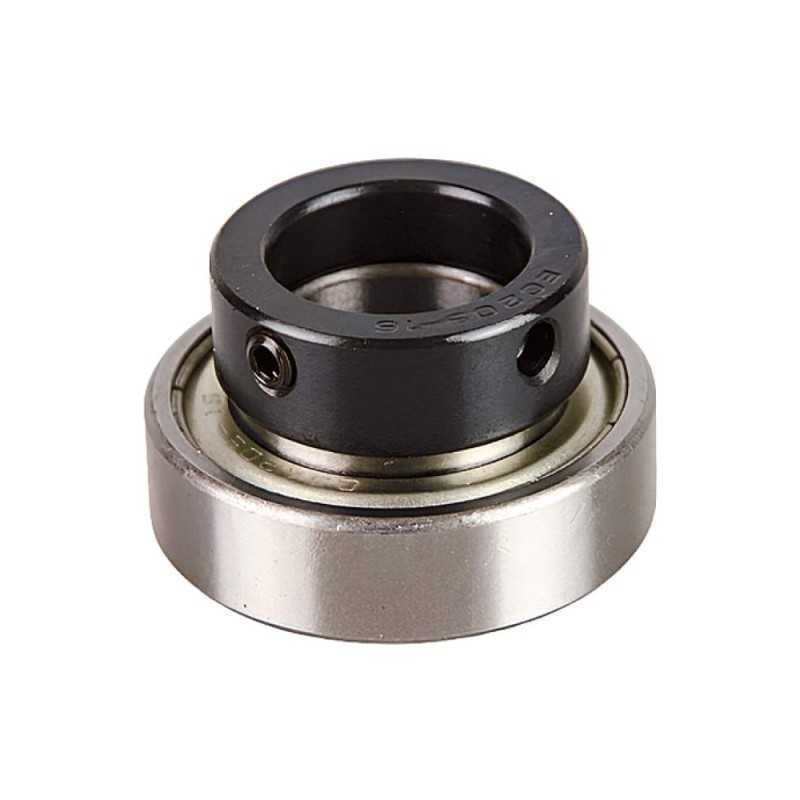

CSA 205 RICH 25x52x15

CSA 205 RICH Ball Bearing with Flat Outer Ring – dimensions 25 x 52 x 31 mm, steel cage, weight 0.206 kg. Cylindrical outer ring with groove, double-sided rubber contact seals. Ensures rigidity, dust protection, and long service life.

RICH
CSA205
€2.57
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

CSA 205 RICH | Ball Bearing with Flat Outer Ring – 25 x 52 x 31 mm

Technical Specifications:

  • Catalog Code: CSA 205 RICH
  • Brand: RICH
  • Bearing Type: Ball Bearing with Flat Outer Ring
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 52 mm
  • Total Width (T): 31 mm
  • Outer Ring Width (C): 15 mm (insert bearing)
  • Outer Ring Profile: Cylindrical (not rounded)
  • Groove on Outer Ring: Yes
  • Weight: 0.206 kg
  • Sealing: Double-sided rubber, contact type
  • Country of Origin: China

Key Performance Advantages:

  • Flat Outer Ring: Cylindrical profile for secure seating in housings.
  • Snap Ring Groove: Facilitates axial location in the housing.
  • Double Rubber Seals: Contact type sealing ensures protection against contaminants and reliable grease retention.
  • Optimized Dimensions: 25 mm bore, 52 mm outer diameter, 31 mm total width.
  • Insert Bearing Execution: Outer ring width 15 mm, designed for mounting in flat housings.
  • RICH Quality: Precision manufactured for durability and consistent performance.

Transparency Note: This ball bearing with flat outer ring is manufactured directly under the RICH brand. The catalog code CSA 205 is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
25
Outer Diameter
52
Width
15
Weight
0,206
Category
Ball Bearing with Flat Outer Ring
