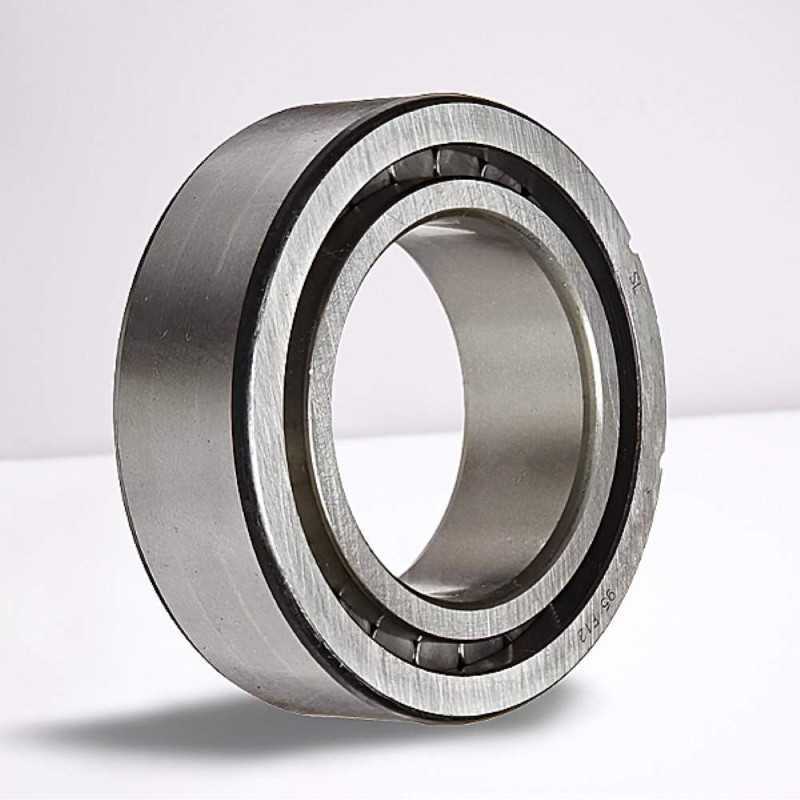

SL01-4920 C3 RICH Double Row Cylindrical Roller Bearing - 100 x 140 x 40 mm
Technical Specifications:
- Catalog Code: SL01-4920 C3 RICH
- Brand: RICH
- Type: Double row cylindrical roller bearing (Full complement)
- Bore Diameter (d): 100 mm
- Outer Diameter (D): 140 mm
- Width (B): 40 mm
- Clearance: C3 (Greater than normal)
- Cage: None (Full complement design)
- Weight: 1.966 kg
- Country of Origin: China
Product Overview:
The SL01-4920 C3 RICH is a heavy-duty double row cylindrical roller bearing designed for applications requiring exceptionally high radial load-carrying capacity. As part of the SL01 series, this bearing features a full complement of rollers, meaning it does not utilize a cage. This design allows for the maximum possible number of rollers to be incorporated, providing significantly higher load ratings than bearings with cages. The 100 mm bore and 140 mm outer diameter configuration is engineered for high-precision industrial machinery, cranes, and heavy-duty gearboxes. With its C3 internal clearance, the bearing is optimized to handle thermal expansion and maintain operational stability under intense heat and heavy-load conditions. The open design facilitates easy integration into oil-circulated or grease-lubricated systems.
Key Performance Advantages:
- Maximum Radial Capacity: Full complement roller design provides the highest possible load rating for its size.
- Enhanced Rigid Design: Double row geometry offers superior stability and resistance to radial forces.
- Thermal Tolerance: C3 clearance prevents internal stress during continuous operation in high-heat environments.
- Industrial Durability: Crafted from high-fatigue resistant steel for prolonged service life in heavy industrial sectors.
Transparency Note: This bearing is manufactured under the RICH brand. The code SL01-4920 C3 is used solely for identification and do not imply affiliation with other manufacturers.
