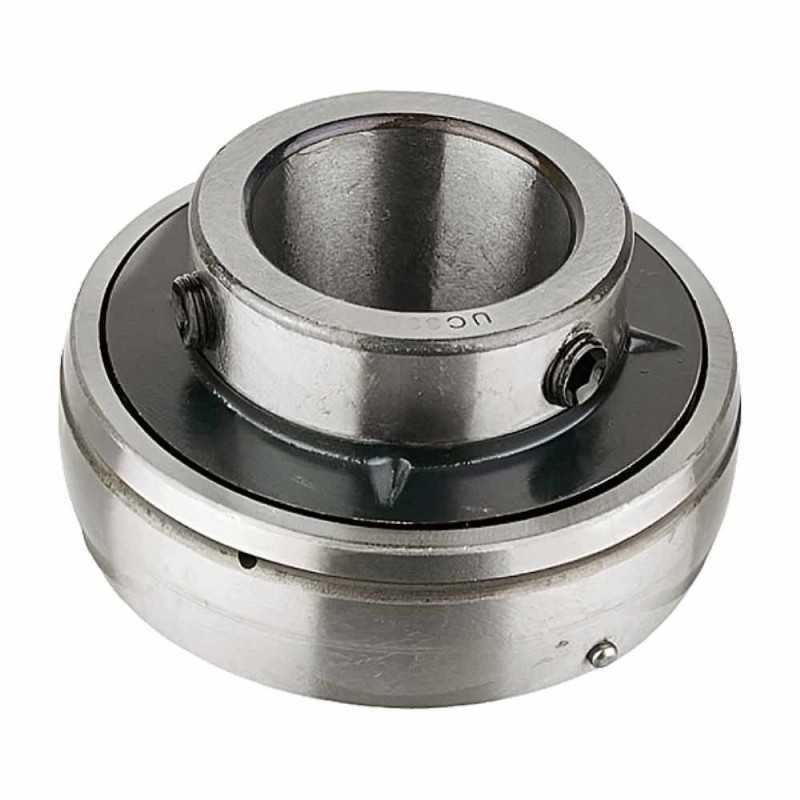

UC210-31 G RICH 49,213x90x51,6 UC210-31G RICH
zoom_out_map
UC210-31 G RICH 49,213x90x51,6 UC210-31G RICH

UC210-31 G RICH 49,213x90x51,6

Type: Insert Ball Bearing
Model: UC210-31 G RICH
Dimensions: 49.213 x 90 x 51.6 mm
Locking: Set Screw
Brand: RICH
Origin: China
RICH
UC210-31G
€6.32
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

UC210-31 G RICH Insert Ball Bearing - 49.213 x 90 x 51.6 mm

OE Reference / Interchange:

INS-SC-115 DODGE | SC-115 DODGE

Technical Specifications:

  • Catalog Code: UC210-31 G RICH
  • Brand: RICH
  • Type: Insert ball bearing (Set-screw locking)
  • Shaft Diameter (d): 49.213 mm (1-15/16 inch)
  • Outer Diameter (D): 90 mm
  • Inner Ring Width (B): 51.6 mm
  • Outer Ring Width (C): 23 mm
  • Sealing: Double-sided lip seal with slinger plate
  • Features: Lubrication groove, rounded outer ring
  • Weight: 0.78 kg
  • Country of Origin: China

Key Performance Advantages:

  • Self-Aligning Capability: The RICH spherical outer ring design compensates for initial static misalignment, ensuring smooth operation even if the shaft and housing are not perfectly centered.
  • Secure Shaft Attachment: Equipped with two precision set screws located on the inner ring, providing a strong and reliable grip on the shaft to prevent slipping.
  • Advanced Triple Protection Sealing: The double-sided lip seals are reinforced with protective metal plates (slingers), shielding the internal components from dust, water, and debris.
  • Relubrication Ready: Featuring a dedicated lubrication groove and holes on the outer ring, this bearing allows for easy maintenance and grease replenishment through the housing.
  • High Radial Load Resistance: Manufactured from premium-grade bearing steel, it is engineered to withstand high radial forces and moderate axial loads in heavy-duty machinery.

Transparency Note: This component is manufactured under the RICH brand. The code UC210-31 G is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
49,213
Outer Diameter
90
Width
51,6
