DB-601-333 RICH 32x37x4,6 DB601-333 RICH
search
  • DB-601-333 RICH 32x37x4,6 DB601-333 RICH

DB-601-333 RICH 32x37x4,6

RICH
DB601-333
€0.00
No tax
Quantity
Out Of Stock

Rating:
(0)

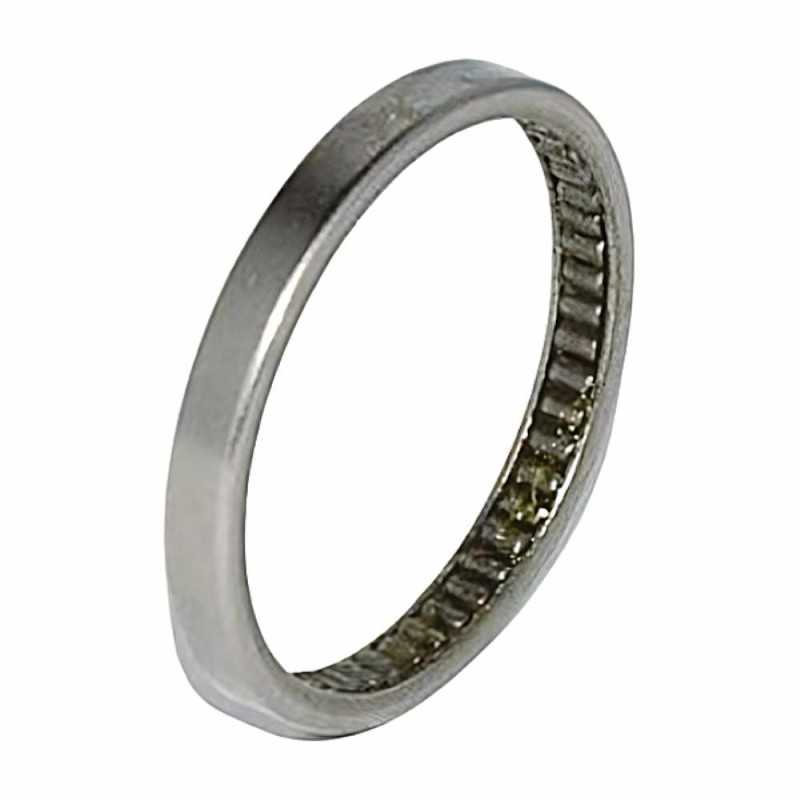

DB-601-333 RICH Radial Cylindrical Roller Bearing – 32 mm x 37 mm x 4.6 mm

Technical Specifications:

  • Bearing Type: Radial Cylindrical Roller Bearing Without Inner Ring
  • Model Designation: DB-601-333
  • Brand: RICH
  • Bore Diameter (FW): 32 mm
  • Outer Diameter (D): 37 mm
  • Total Width (C): 4.6 mm
  • Dimensions: 32 mm x 37 mm x 4.6 mm
  • Weight: 0.008 kg
  • Country of Origin: China

The DB-601-333 RICH is a miniature single row cylindrical roller bearing without inner ring, designed for radial load support in ultra-compact mechanical systems. With dimensions of 32 mm bore, 37 mm outer diameter, and 4.6 mm width, it is ideal for precision assemblies, miniature gearboxes, and rotating mechanisms where the shaft serves as the raceway.

Its open design allows for maximum roller density and minimal friction. Manufactured in China under the RICH brand, this bearing offers a reliable alternative to premium components, ensuring performance in tight tolerance environments.

Key Performance Advantages:

  • Ultra-Compact Design: Just 4.6 mm wide for miniature assemblies.
  • Inner Ring-Free: Uses shaft as raceway for space-saving integration.
  • Low Friction: Cylindrical rollers ensure smooth radial motion.
  • Reliable Build: Engineered for precision and long service life.

Transparency Note: This bearing is manufactured under the RICH brand. The code DB-601-333 is used solely for compatibility identification and does not imply any affiliation with other brands. The product is clearly marked with its actual brand and country of origin.

Data sheet

Inner Diameter
32
Outer Diameter
37
Width
4,8
Weight
0,008
Roller Rows
Single Row
Category
Single Row Cylindrical Roller Bearing
