81108 M RICH 40x60x13

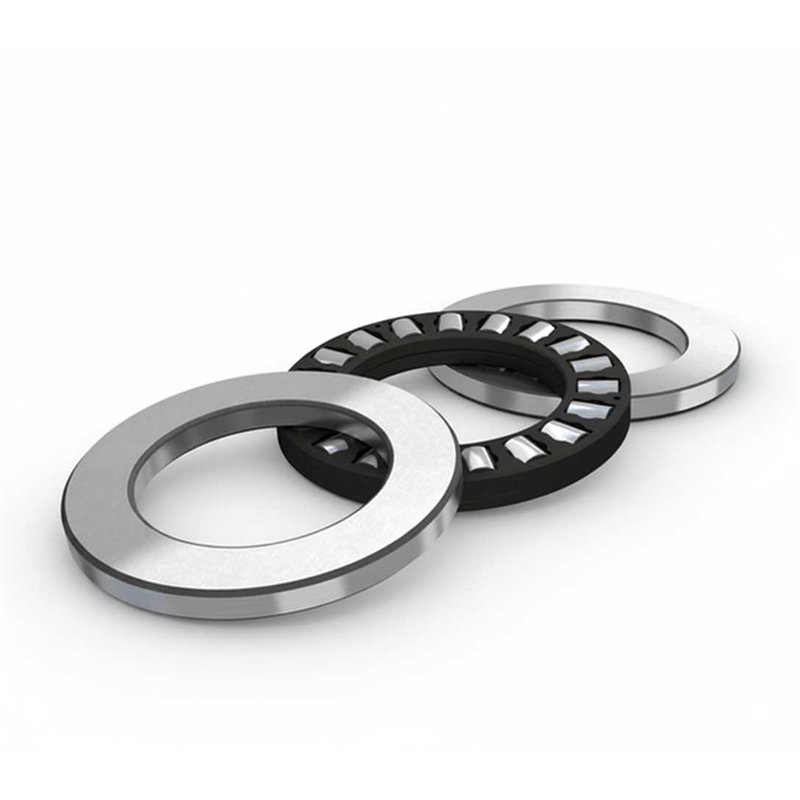

81108 M RICH – Axial Cylindrical Roller Bearing – 40 x 60 x 13 mm

Technical Specifications:

• Type: Axial cylindrical roller bearing
• Brand: RICH
• Model Designation: 81108 M
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 60 mm
• Total Height (H): 13 mm
• Cage Material: Machined brass (Rolling element guided)
• Weight: 0.135 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Axial thrust bearing assembly consisting of a cylindrical roller cage, a shaft washer, and a housing washer.
• Cage Specification: Features a solid machined brass cage (M) guided by the rolling elements for high-speed stability and mechanical durability.
• Load Management: Engineered to accommodate heavy axial loads in one direction while providing high rigid support.
• Mechanical Interface: 40 x 60 x 13 mm dimensional format produced to standardized industrial tolerances for precise axial positioning.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
