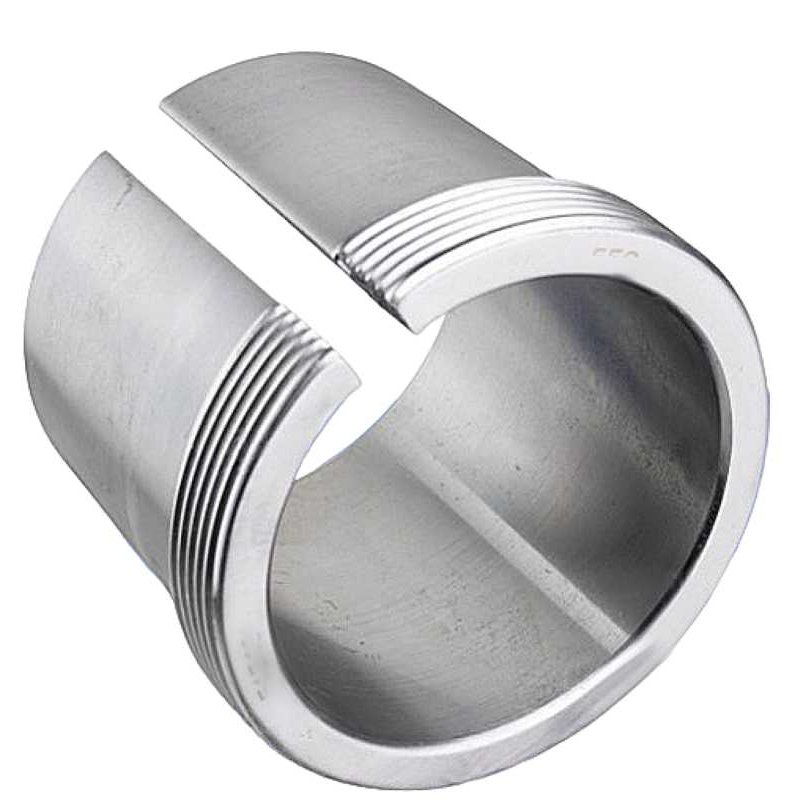

The AH 2313 RICH is a high-precision withdrawal sleeve designed for mounting bearings with a tapered bore onto the cylindrical seats of stepped shafts. With a 60 mm inner diameter and a length of 61 mm, this sleeve is part of the 23 series, which features a wider profile to provide enhanced support and a larger contact area for the bearing. The component features a standard 1:12 taper on the outer surface, ensuring a perfectly centered and secure interference fit when the bearing is pressed into place. During maintenance, the integrated M75x2 thread allows for the use of a withdrawal nut to easily dismount the bearing from the shaft without risking damage to the precision surfaces. Manufactured from high-tensile steel, it is an essential accessory for industrial drivetrain systems, conveyors, and agricultural machinery where ease of serviceability and mounting accuracy are priority requirements.
Transparency Note: This component is manufactured under the RICH brand. The code AH 2313 is used for identification purposes and does not imply affiliation with other manufacturers. The standard thread for this model is M75x2.
Data sheet
