LR50/7-2RS RICH 7x22x10 LR50/7-2RS RICH
zoom_out_map
LR50/7-2RS RICH 7x22x10 LR50/7-2RS RICH

LR50/7-2RS RICH 7x22x10

Type: Track Roller
Model: LR50/7-2RS RICH
Bore: 7 mm
Profile: Rounded
Brand: RICH
Origin: China
RICH
LR50/7-2RS
€7.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

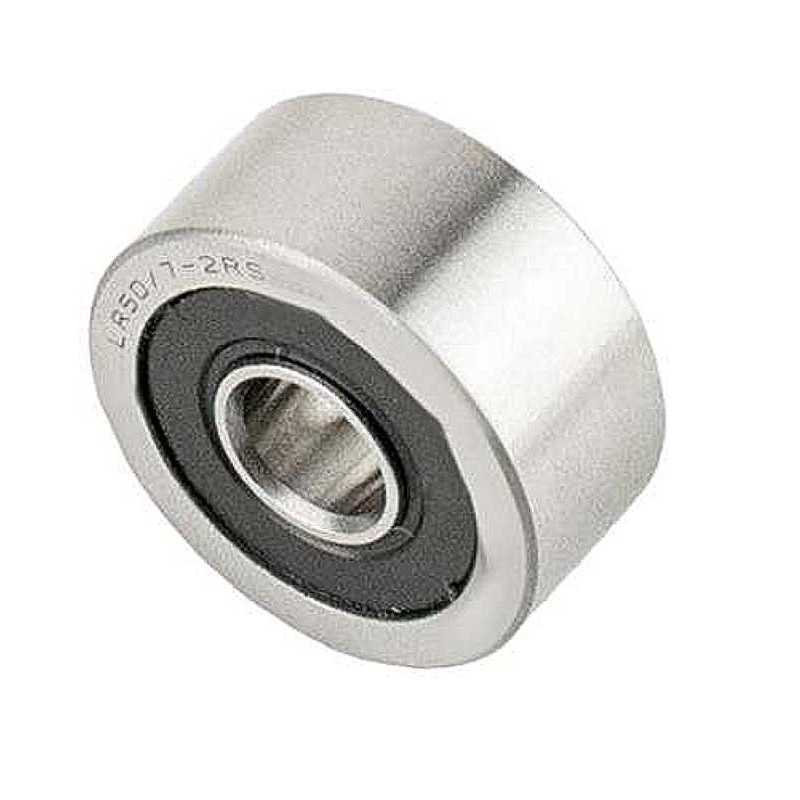

LR50/7-2RS RICH Track Roller - 7 x 22 x 10 mm

Technical Specifications:

  • Catalog Code: LR50/7-2RS RICH
  • Brand: RICH
  • Type: Track roller (Double row ball bearing design)
  • Inner Diameter (d): 7 mm
  • Outer Diameter (D): 22 mm
  • Width (B): 10 mm
  • Outer Ring Profile: Rounded / Crowned
  • Sealing: 2RS (Double-sided rubber contact seals)
  • Weight: 0.025 kg
  • Country of Origin: China

Key Performance Advantages:

  • Crowned Outer Ring: The spherical/rounded outer surface prevents edge loading and compensates for slight angular misalignments, protecting both the roller and the track from premature wear.
  • Double Row Bearing Structure: Equipped with a double row of balls to provide higher radial load carrying capacity and superior tilting stability compared to single row rollers.
  • 2RS Contact Seals: Features high-quality rubber seals on both sides to maintain internal lubrication and provide an effective barrier against moisture and dust.
  • Precision Movement: Engineered for smooth, quiet operation in cam drives, conveyor systems, and various linear guidance applications.

Transparency Note: This product is manufactured under the RICH brand. The code LR50/7-2RS is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
7
Outer Diameter
22
Width
10
Weight
0,025
