H 216 RICH 70x80x46 H216 RICH
zoom_out_map
H 216 RICH 70x80x46 H216 RICH

H 216 RICH 70x80x46

Type: Adapter Sleeve
Model: H 216 RICH
Dimensions: 70 x 80 x 46 mm
Components: Sleeve, Nut, and Lock Washer
Brand: RICH
Origin: China
RICH
H216
€8.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

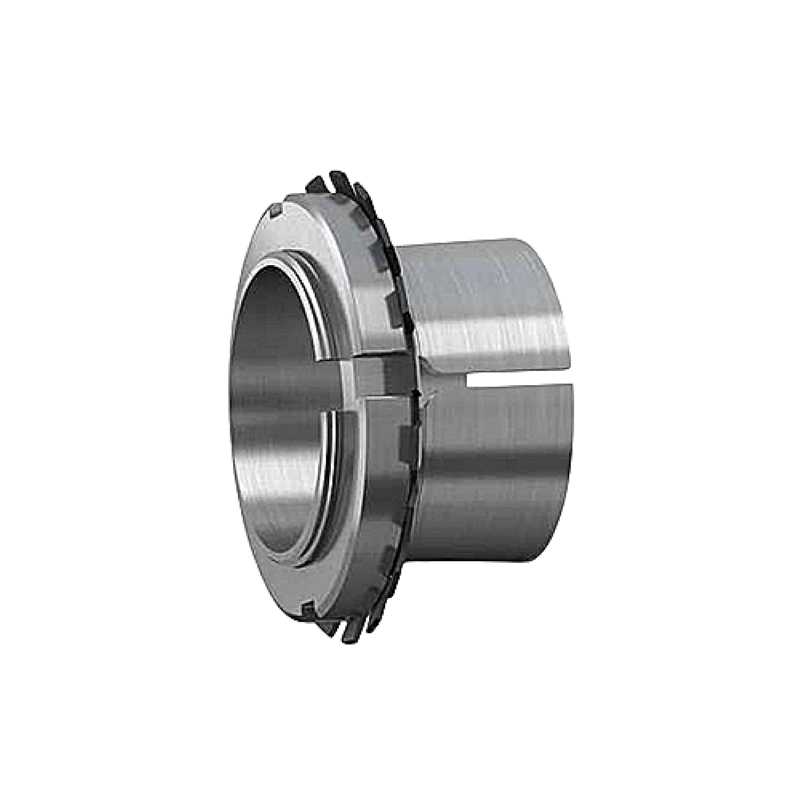

H 216 RICH Adapter Sleeve - 70 x 80 x 46 mm

Technical Specifications:

  • Catalog Code: H 216 RICH
  • Brand: RICH
  • Type: Adapter sleeve for tapered bore bearings
  • Shaft Diameter (d1): 70 mm
  • Bore Diameter (d): 80 mm
  • Width (B1): 46 mm
  • Weight: 0.859 kg
  • Country of Origin: China

Key Performance Advantages:

  • Reliable Mechanical Locking: The RICH brand ensures a dependable interference fit between the shaft and the bearing, preventing axial displacement even under heavy-duty operational loads.
  • Precision Clearance Management: The tapered geometry allows for the accurate setting of the bearing internal radial clearance during installation by adjusting the lock nut torque.
  • Versatile Shaft Compatibility: Designed for use on smooth or stepped cylindrical shafts, removing the need for expensive shaft machining like shoulders or specialized threads.
  • Complete Mounting Solution: Each unit is supplied as a full set, including the slotted adapter sleeve, a precision-threaded lock nut, and a multi-tab locking washer for fail-safe security.
  • High-Tensile Steel: Manufactured from premium steel to resist deformation and wear, ensuring long-term structural integrity in demanding environments.

Transparency Note: This component is manufactured under the RICH brand. The code H 216 is used for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
80
Width
46
Category
Adapter Sleeve
