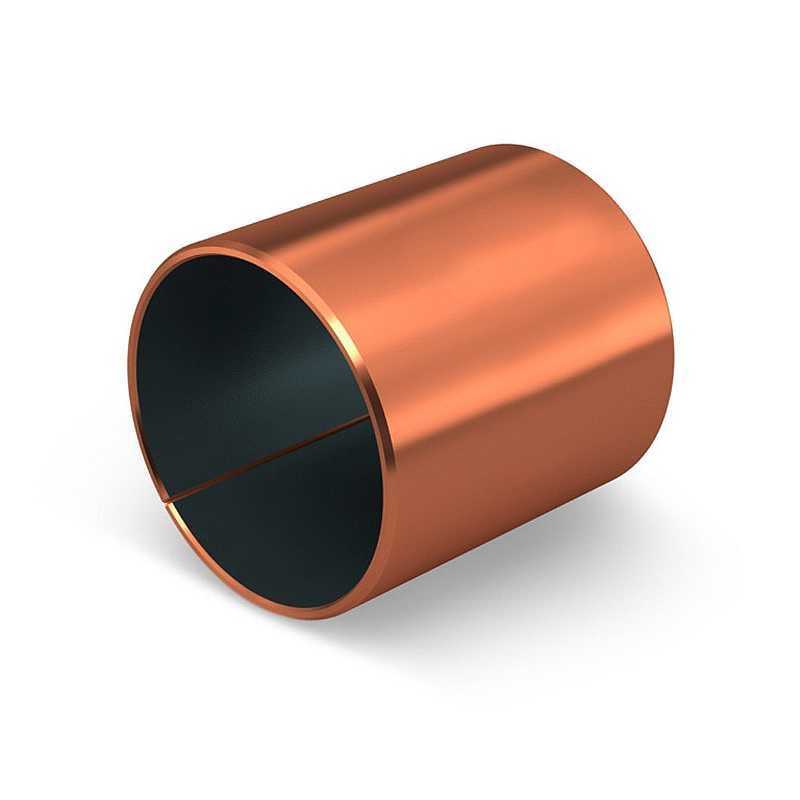

PAP 1825 P11 RICH Thin Wall Bush - 18 x 20 x 25 mm
Technical Specifications:
- Catalog Code: PAP 1825 P11 RICH
- Brand: RICH
- Type: Thin wall dry sliding bush
- Dimensions: 18 x 20 x 25 mm
- Inner Diameter (d): 18 mm
- Outer Diameter (D): 20 mm
- Width (L): 25 mm
- Material: PTFE on bronze back (Non-magnetic/Corrosion resistant)
- Lubrication: Self-lubricating (Maintenance-free)
- Weight: 0.012 kg
- Country of Origin: China
Key Performance Advantages:
- Anti-Corrosive Bronze Backing: Unlike standard steel-backed bushings, the P11 series utilizes a bronze backing, providing superior resistance to corrosion in wet or saline environments.
- Non-Magnetic Properties: The full bronze and PTFE construction makes this bush ideal for applications requiring non-magnetic components, such as medical imaging or electronic equipment.
- Maintenance-Free PTFE Layer: Features a self-lubricating sliding surface that eliminates the need for external grease, ensuring a clean and cost-effective operation.
- Excellent Heat Dissipation: The bronze substrate offers higher thermal conductivity than steel, effectively moving heat away from the sliding surface to extend the service life.
Transparency Note: This product is manufactured under the RICH brand. The code PAP 1825 P11 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.
