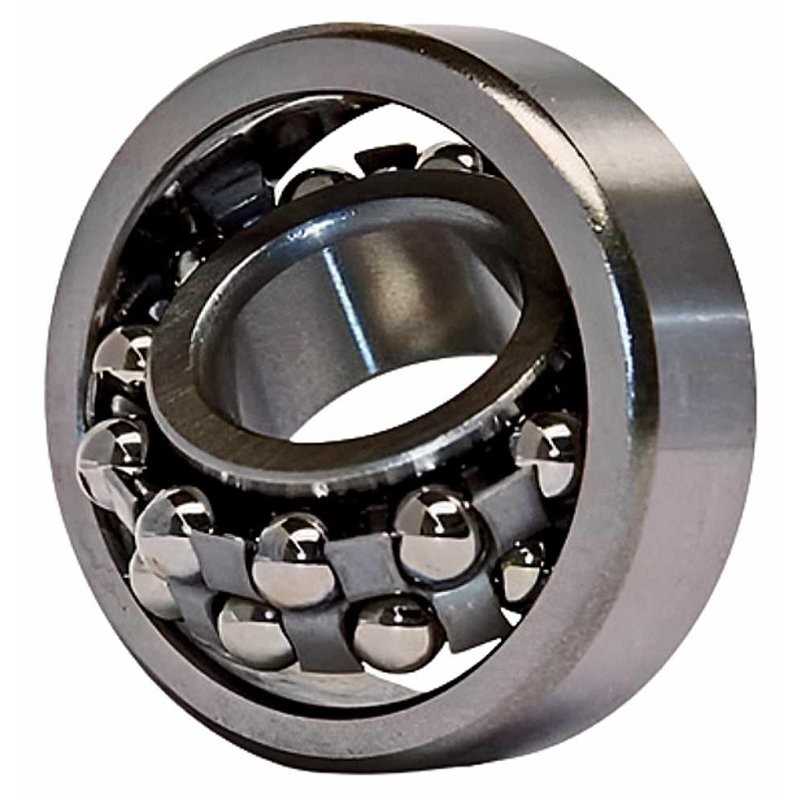

2217 K C3 RICH 85x150x36 2217KC3 RICH

2217 K C3 RICH 85x150x36

Type: Self-Aligning Ball Bearing
Model: 2217-K-C3 RICH
Dimensions: 85 x 150 x 36 mm
Bore: Tapered 1:12 (K)
Clearance: C3
Brand: RICH
Origin: China
RICH
2217KC3
€17.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

2217-K-C3 RICH Self-Aligning Ball Bearing with Tapered Bore - 85 x 150 x 36 mm

Technical Specifications:

  • Catalog Code: 2217-K-C3 RICH
  • Brand: RICH
  • Type: Self-aligning ball bearing (Double row)
  • Bore Diameter (d): 85 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 36 mm
  • Bore Type: Tapered 1:12 (Suffix K)
  • Internal Clearance: C3 (Greater than Normal)
  • Cage Material: Steel
  • Sealing: Open (None)
  • Weight: 2.488 kg
  • Country of Origin: China

Key Performance Advantages:

  • Misalignment Compensation: The spherical raceway in the outer ring allows the bearing to compensate for angular misalignments (up to 3 degrees) between the shaft and housing, preventing internal stress and overheating.
  • Tapered Bore for Secure Mounting: The 1:12 taper (K) is designed for use with an adapter sleeve, allowing the bearing to be securely clamped onto a standard 75 mm cylindrical shaft with high precision.
  • C3 High-Temperature Clearance: The "C3" internal clearance is ideal for applications where thermal expansion of the shaft or inner ring is expected, ensuring the bearing maintains optimal rotation without seizing.
  • High Radial Load Capacity: This wide-series bearing (36 mm) handles substantial radial loads, making it a reliable choice for heavy-duty industrial fans, separators, and agricultural machinery.
  • Optimized Steel Cage: The pressed steel cage is designed for maximum ball guidance and heat dissipation, supporting high-speed operation with minimal friction.

Technical Note: To mount this 85 mm tapered bore bearing on a standard straight shaft, an H 317 adapter sleeve is typically required. Please ensure the mounting accessories are compatible with your shaft diameter.

Transparency Note: This product is manufactured under the RICH brand. The code 2217-K-C3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
85
Outer Diameter
150
Width
36
Clearance
C3 (Greater than Normal)
Category
Self-Aligning Ball Bearing
