PAP 2012 P10 RICH 20x23x12 PAP2012P10 RICH

PAP 2012 P10 RICH 20x23x12

Type: Thin Wall Bush
Model: PAP 2012 P10 RICH
Bore: 20 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP2012P10
€0.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

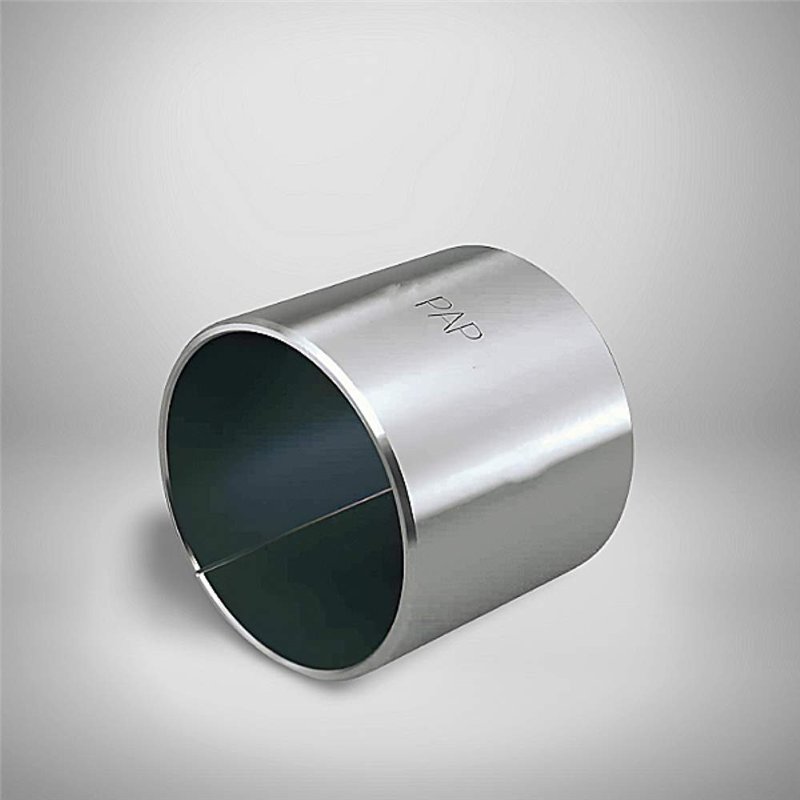

PAP 2012 P10 RICH Thin Wall Bush - 20 x 23 x 12 mm

Technical Specifications:

  • Catalog Code: PAP 2012 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 20 x 23 x 12 mm
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 23 mm
  • Width (L): 12 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.009 kg
  • Country of Origin: China

Key Performance Advantages:

  • Self-Lubricating Efficiency: The PTFE-based sliding layer provides an exceptionally low coefficient of friction, allowing for maintenance-free operation without external grease.
  • Robust Composite Build: Combines a rigid steel backing for high mechanical strength with a sintered bronze interlayer for optimal thermal conductivity and bonding.
  • Space-Saving Profile: The thin wall design (1.5 mm wall thickness) allows for compact housing integration, making it ideal for high-density machinery layouts.
  • High Load Capacity: Engineered to withstand significant radial loads while maintaining structural integrity in dry or lubricated sliding conditions.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 2012 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
23
Width
12
Category
Thin wall bush
