PAP 2030 P20 RICH 20x23x30 PAP2030P20 RICH
zoom_out_map
PAP 2030 P20 RICH 20x23x30 PAP2030P20 RICH

PAP 2030 P20 RICH 20x23x30

Type: Thin Wall Bush
Model: PAP 2030 P20 RICH
Bore: 20 mm
Material: POM/PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP2030P20
€0.62
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 50.

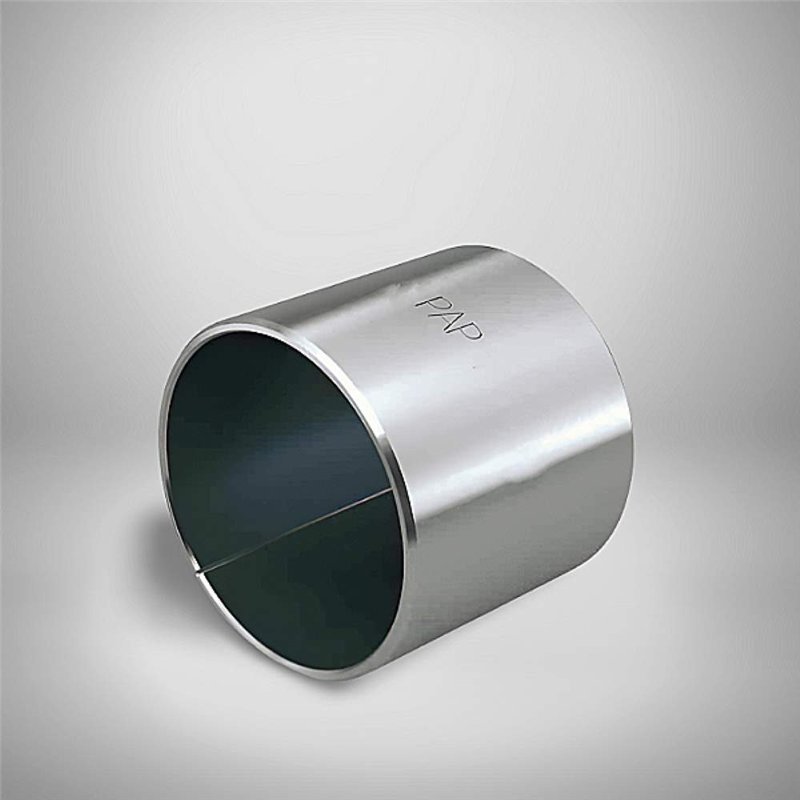

PAP 2030 P20 RICH Thin Wall Bush - 20 x 23 x 30 mm

Technical Specifications:

  • Catalog Code: PAP 2030 P20 RICH
  • Brand: RICH
  • Type: Thin wall sliding bush (Boundary lubrication)
  • Dimensions: 20 x 23 x 30 mm
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 23 mm
  • Width (L): 30 mm
  • Material: POM/PTFE on steel back (DX series)
  • Lubrication: Designed for relubrication (Boundary lubrication)
  • Weight: 0.017 kg
  • Country of Origin: China

Key Performance Advantages:

  • Boundary Lubrication Design: Specifically engineered for applications where initial or periodic relubrication is required, featuring a thicker sliding layer compared to dry-running P10 models.
  • Exceptional Load Distribution: The 30 mm width provides an extended contact surface, significantly reducing unit pressure on the shaft and enhancing the stability of the assembly.
  • Steel-Backed Strength: The rigid steel backing ensures excellent structural integrity and high resistance to deformation under heavy radial loads.
  • High Wear Resistance: The composite structure with a POM/PTFE top layer offers superior wear resistance in environments with low-speed, high-load requirements.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 2030 P20 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
23
Width
30
Category
Thin wall bush
