3994/3920 RICH 66,675x112,712x30,162

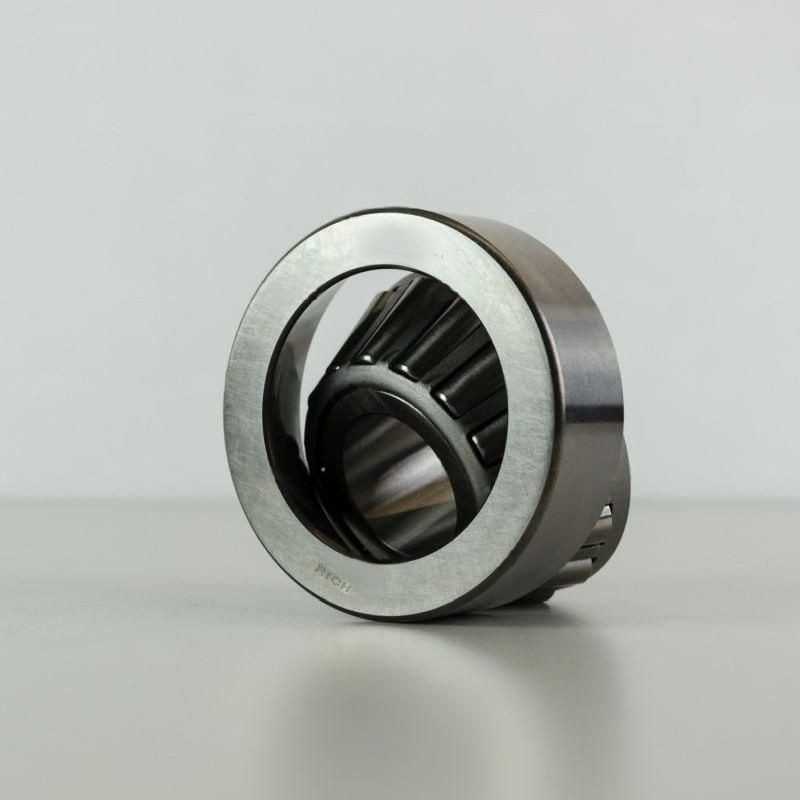

The 3994/3920 RICH is a single row tapered roller bearing (66.675 mm bore) designed for high loads. It is a replacement for OE parts from IHC.

RICH
3994/20
€14.02
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

3994/3920 RICH Single Row Tapered Roller Bearing - 66.675 x 112.712 x 30.162 mm

The 3994/3920 RICH single row tapered roller bearing is engineered to handle combined radial and axial loads with exceptional reliability. Its robust design features a durable inner ring, outer ring, and tapered rollers. With precise dimensions of 66.675 mm inner diameter, 112.712 mm outer diameter, and a total width of 30.162 mm, this bearing provides an optimal fit and smooth operation. Weighing 1.194 kg, this high-quality RICH bearing is a reliable and cost-effective solution for various industrial applications.

OE References:

  • IHC: IHCST2085, IHC9427261, IHC77034R91, IHC62202C91, IHC3885227R91, IHC3084A1C19

Technical Specifications:

  • Bearing Type: Single Row Tapered Roller Bearing
  • Model Designation: 3994/3920
  • Brand: RICH
  • Dimensions: 66.675 x 112.712 x 30.162 mm
  • Inner Diameter (d): 66.675 mm
  • Outer Diameter (D): 112.712 mm
  • Total Width (T): 30.162 mm
  • Outer Ring Width (C): 23.812 mm
  • Inner Ring Width: 30.048 mm
  • Rounding Radius (R2): 3.3 mm
  • Weight: 1.194 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Load Capacity: Optimized for combined radial and axial loads.
  • Separable Components: The inner and outer rings can be mounted separately.
  • Precision Engineering: Ensures accurate fit and consistent performance.
  • Durable Construction: Built to withstand significant forces for a long service life.
  • RICH Quality: Designed to high standards for dependable performance.

Data sheet

Inner Diameter
66,675
Outer Diameter
112,712
Width
30,162
Weight
1,194
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Tapered Roller Bearing
