PAP 5040 P10 50x55x40 PAP5040P10 RICH
zoom_out_map
PAP 5040 P10 50x55x40 PAP5040P10 RICH

PAP 5040 P10 50x55x40

Type: Thin Wall Bush
Model: PAP 5040 P10 RICH
Bore: 50 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP5040P10
€1.30
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 8.

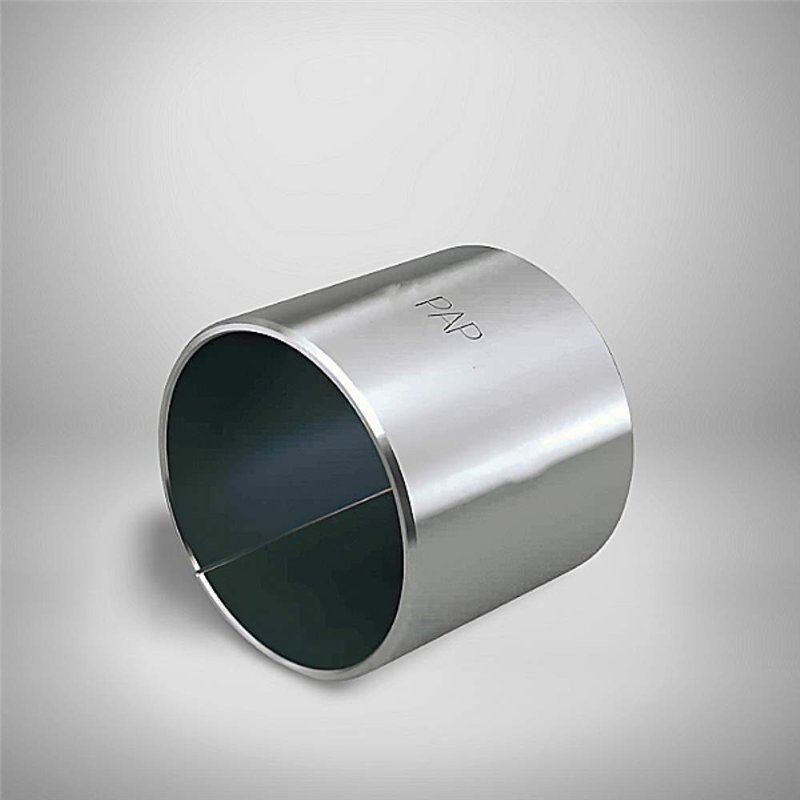

PAP 5040 P10 RICH Thin Wall Bush - 50 x 55 x 40 mm

Technical Specifications:

  • Catalog Code: PAP 5040 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 50 x 55 x 40 mm
  • Inner Diameter (d): 50 mm
  • Outer Diameter (D): 55 mm
  • Width (L): 40 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.123 kg
  • Country of Origin: China

Key Performance Advantages:

  • High-Efficiency Self-Lubrication: The PTFE sliding layer provides an extremely low coefficient of friction, allowing for maintenance-free operation without the need for additional grease or oil.
  • Extended Contact Surface: The 40 mm width provides a large bearing area, which significantly improves radial load distribution and enhances the longevity of both the bush and the shaft.
  • Rigid Composite Structure: Constructed with a high-strength steel backing and a sintered bronze interlayer for superior heat dissipation and mechanical stability under heavy loads.
  • Space-Optimized Engineering: The thin wall design (2.5 mm thickness) allows for heavy-duty performance in applications with restricted radial space.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 5040 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
55
Width
40
Category
Thin wall bush
