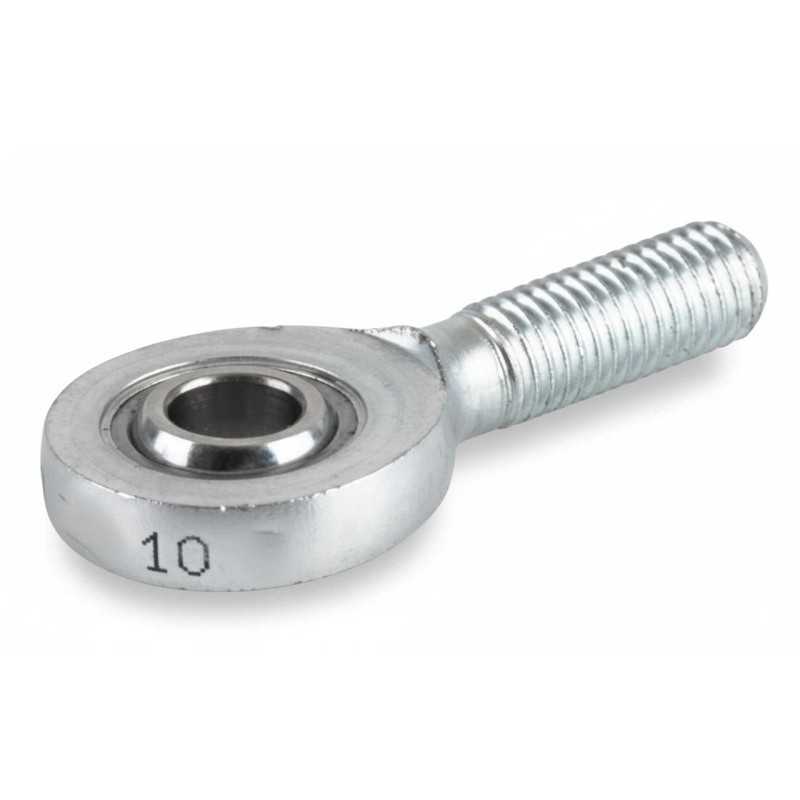

REA 10 RICH – Rod End | Thread Size: M10

REA 10 RICH – Rod End – 10 × 29 × 48 mm

Technical Specifications:

• Type: Rod end with male thread (maintenance-free configuration)
• Brand: RICH
• Model Designation: REA 10
• Inner Diameter (d): 10 mm
• Outer Diameter (A): 29 mm
• Height to Axis (F): 48 mm
• Thread Size: M10
• Thread Length (GL): 26 mm
• Outer Ring Width (C): 7 mm
• Inner Ring Width: 9 mm
• Friction Pair: Steel/PTFE
• Housing Material: Free-cutting steel (9SMnPb28K / 12L13)
• Inner Ring Material: Bearing steel (100Cr6 / AISI 52100)
• Dimensional Series: E
• Weight: 0.024 kg
• Country of Origin: China

Construction Features:

• Housing: Free-cutting steel body with male-threaded shank and zinc-plated surface treatment.
• Bearing Configuration: Maintenance-free spherical plain bearing incorporating a steel/PTFE friction pair.
• Internal Layout: Spherical inner ring manufactured from bearing steel positioned within the PTFE-based sliding layer.
• Dimensional Format: 10 × 29 × 48 mm configuration consistent with standardized geometry for series E rod ends.

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
