PAP 85100 P10 RICH 85x90x100 PAP85100P10 RICH
zoom_out_map
PAP 85100 P10 RICH 85x90x100 PAP85100P10 RICH

PAP 85100 P10 RICH 85x90x100

Type: Thin Wall Bush
Model: PAP 85100 P10 RICH
Bore: 85 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP85100P10
€7.42
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

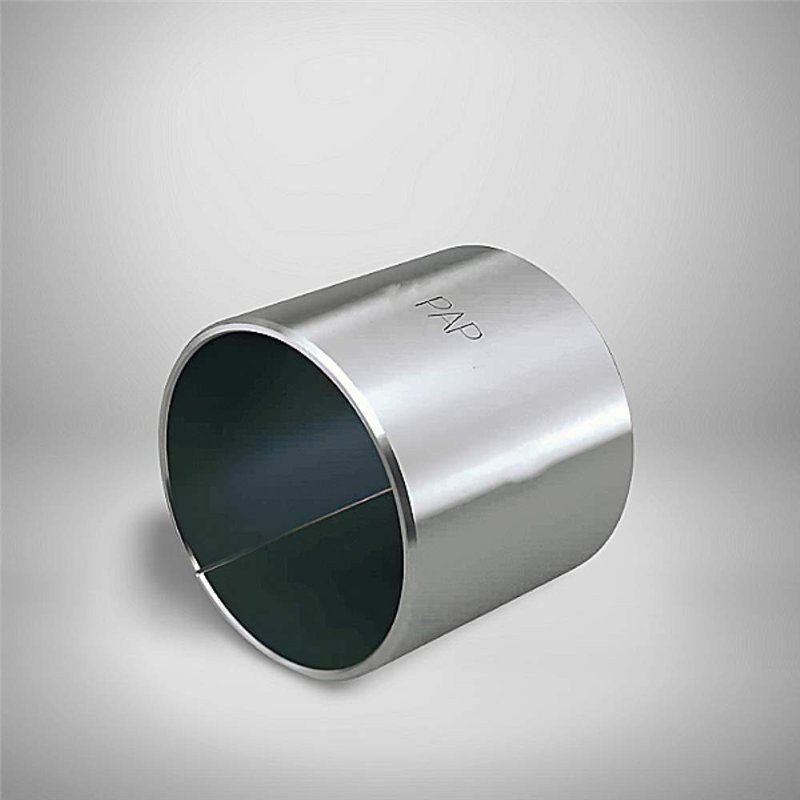

PAP 85100 P10 RICH Thin Wall Bush - 85 x 90 x 100 mm

The PAP 85100 P10 RICH is a high-performance thin wall bush designed for heavy-duty industrial applications requiring maintenance-free operation. This component serves as a direct interchange for PAP 85100 P10 and GLY.PG 8590100 F references, providing a reliable and cost-effective solution for large-diameter shaft support.

Technical Specifications:

  • Catalog Code: PAP 85100 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 85 x 90 x 100 mm
  • Inner Diameter (d): 85 mm
  • Outer Diameter (D): 90 mm
  • Width (L): 100 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.523 kg
  • Country of Origin: China

Key Performance Advantages:

  • Ultra-Long Contact Surface: The 100 mm width provides an exceptionally large bearing area, ideal for stabilizing long shafts and distributing high radial loads to prevent edge loading.
  • Maintenance-Free Performance: The PTFE-based sliding layer allows for permanent dry operation, eliminating the costs and environmental risks associated with manual lubrication.
  • Structural Integrity: Despite the 2.5 mm thin wall design, the high-strength carbon steel backing ensures the bush retains its shape and precision under significant mechanical stress.
  • Broad Temperature Range: Engineered to perform reliably across a wide thermal spectrum, making it suitable for both cooling and high-heat industrial environments.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 85100 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
85
Outer Diameter
90
Width
100
Category
Thin wall bush
