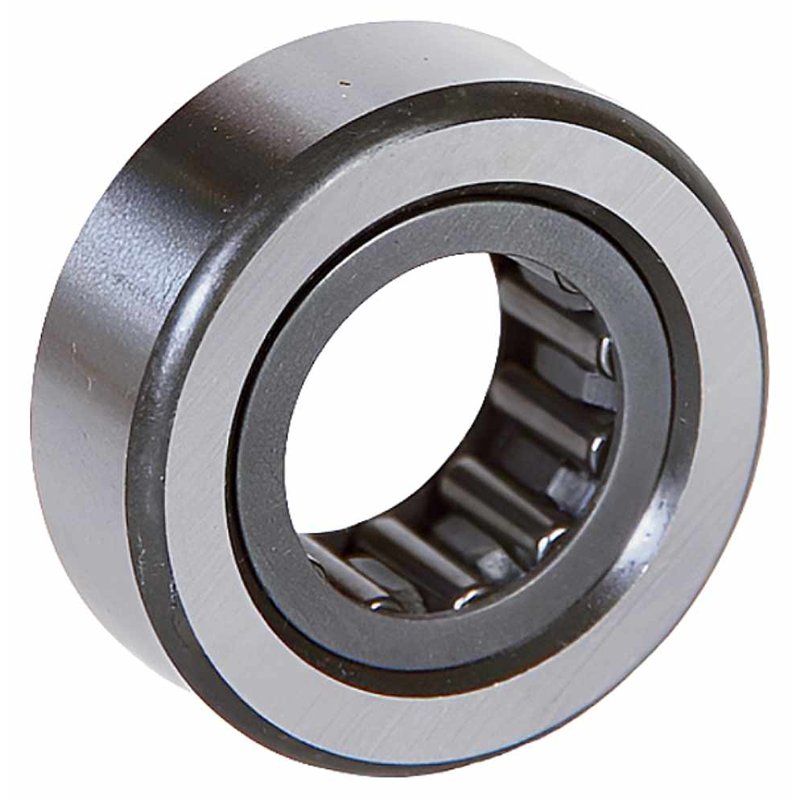

RSTO15 RICH – Yoke Type Track Roller Without Inner Ring – 20x35x11.8 mm

Technical Specifications:

  • Type: Yoke Roller without Inner Ring
  • Brand: RICH
  • Model Designation: RSTO15 RICH
  • Bore Diameter (d): 20 mm
  • Outer Diameter (D): 35 mm
  • Overall Width (B): 11.8 mm
  • Cage Material: Steel (roller-guided)
  • Outer Ring Profile: Crowned (Rounded)
  • Sealing: None (Open Type)
  • Weight: 0.06 kg
  • Country of Origin: Made in China

The RSTO15 RICH is a compact yoke-type track roller without inner ring, designed for applications where the shaft serves as the raceway. With dimensions of 20 mm bore, 35 mm outer diameter, and 11.8 mm width, it is ideal for cam followers, guide tracks, and linear motion systems requiring smooth tracking and high load capacity.

Its crowned outer ring helps reduce edge stress and compensates for minor misalignments, ensuring stable motion across curved or uneven surfaces. The roller-guided steel cage enhances durability and precision under dynamic loads. The open (unsealed) design allows for external lubrication, making it suitable for clean or controlled environments.

Transparency Note: This bearing is manufactured under the RICH brand. The code RSTO15 is used solely for compatibility identification and does not imply any affiliation with other brands. The product is clearly marked with its actual brand and country of origin.

Data sheet

Inner Diameter
20
Outer Diameter
35
Width
11,8
Weight
0,06
Cage
Steel Cage
Category
Yoke Roller without Inner Ring
