PP204 RICH

Type: Pressed Steel Pillow Block Housing
Model: PP204 RICH
Bolt Hole Distance: 76 mm
Base Height (F): 25.4 mm
Brand: RICH
Origin: China
RICH
PP204
€0.79
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

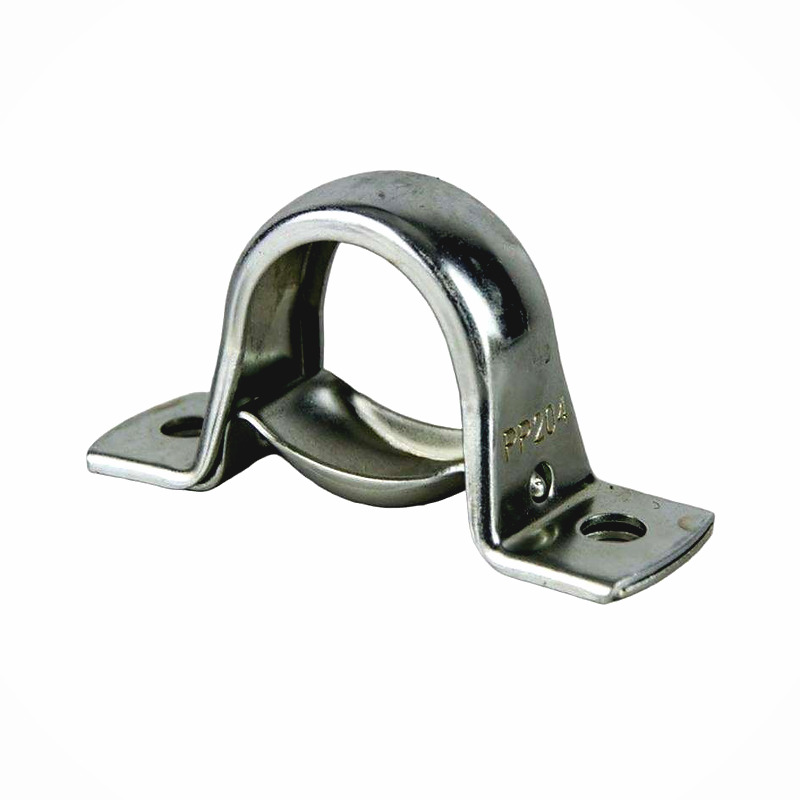

PP204 RICH Pressed Steel Pillow Block Housing - 98.4 mm Length

Technical Specifications:

  • Catalog Code: PP204 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece pillow block)
  • Total Length (L): 98.4 mm
  • Bolt Hole Distance (J): 76 mm
  • Base Width (A): 31.7 mm
  • Base to Center Height (F): 25.4 mm
  • Overall Height (F2): 49.9 mm
  • Bolt Hole Size (N): 9 mm
  • Weight: 0.09 kg
  • Country of Origin: China

Product Overview:

The PP204 RICH is a lightweight, two-piece pressed steel pillow block housing designed for light-duty applications where space and weight savings are critical. This housing is specifically engineered to accommodate standard 204 series insert bearings (typically with a 20 mm bore). The two-piece "clamshell" design allows for easy assembly around the bearing, providing a secure mount while maintaining a low profile. Manufactured from zinc-plated or painted high-quality steel, the PP204 offers basic corrosion resistance and is ideal for conveyors, agricultural machinery, and light industrial fans where high-strength cast iron is not required. The spherical internal seating of the housing allows the inserted bearing to self-align, compensating for minor shaft misalignments during operation.

Key Performance Advantages:

  • Compact & Lightweight: At only 0.09 kg, it provides a functional mounting solution without adding significant mass to the assembly.
  • Easy Installation: The two-piece design simplifies bearing replacement and mounting on flat surfaces.
  • Cost-Effective: Offers a reliable mounting interface at a lower price point than cast iron or stainless steel alternatives.
  • Self-Alignment Support: When paired with a spherical insert bearing, it effectively manages shaft deflection and angular errors.

Transparency Note: This housing is manufactured under the RICH brand. The code PP204 is used for identification purposes and does not imply affiliation with other manufacturers.
