  • 6309 N RICH 45x100x25 6309N RICH

6309 N RICH 45x100x25

RICH
6309N
€5.36
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

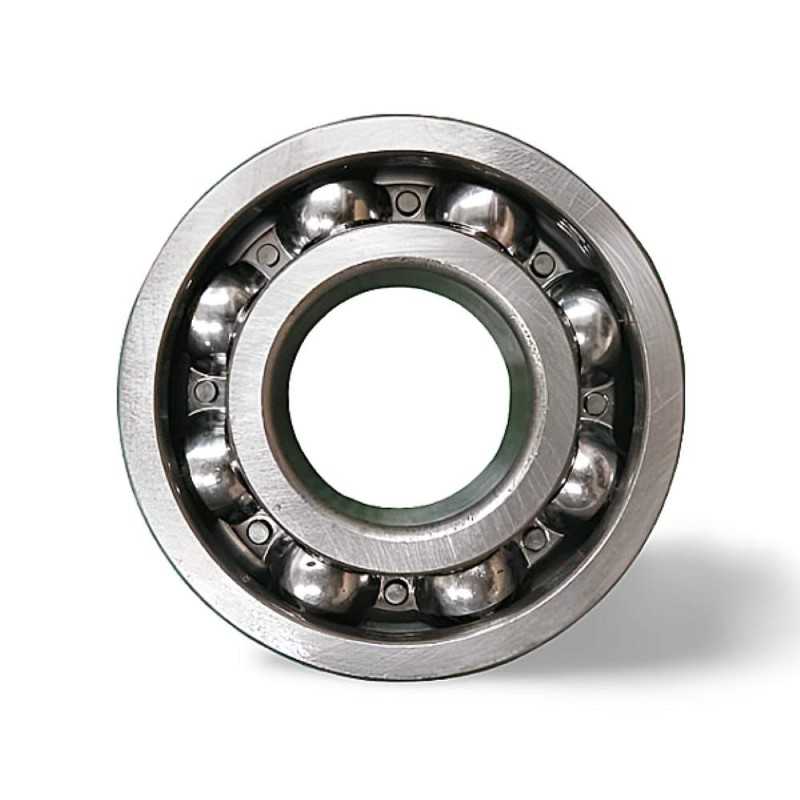

6309N RICH Single Row Deep Groove Ball Bearing with Outer Ring Groove - 45 x 100 x 25 mm, CN Clearance

The 6309N RICH is a single row deep groove ball bearing designed for smooth and efficient rotation. It features normal radial clearance (CN) and a steel cage. The outer ring has a groove. It has key dimensions of 45 mm inner diameter, 100 mm outer diameter, and a width of 25 mm. This bearing weighs approximately 0.82 kg and has no seals. While the provided information doesn't specify the country of origin, all flanged ball bearings I describe are made in China.

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** 6309N RICH
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 100 mm
  • Width (B): 25 mm
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Groove on Outer Ring:** Yes
  • Sealing:** None
  • Weight:** 0.82 kg
  • Country of Origin:** China

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Normal Clearance (CN): Standard radial clearance for general applications.
  • Outer Ring Groove:** Facilitates axial location with a retaining ring.
  • No Seals:** Designed for applications where external sealing or lubrication is provided.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
45
Outer Diameter
100
Width
25
Weight
0,82
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
