PP209 RICH PP209 RICH
zoom_out_map
PP209 RICH PP209 RICH

PP209 RICH

Type: Pressed Steel Pillow Block Housing
Model: PP209 RICH
Bolt Hole Distance: 119.1 mm
Base Height (F): 42.9 mm
Brand: RICH
Origin: China
RICH
PP209
€2.60
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

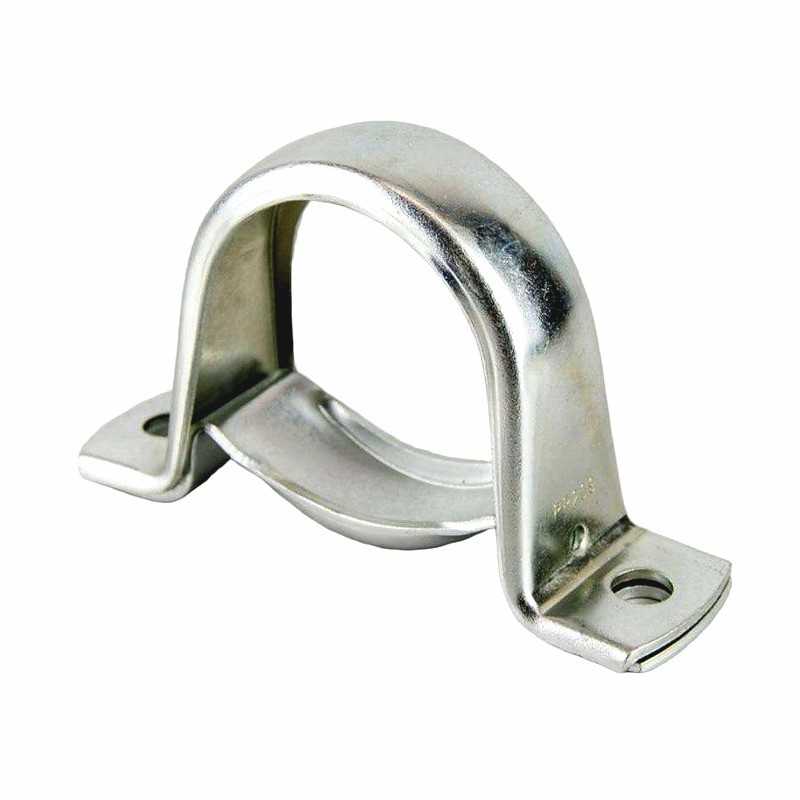

PP209 RICH Pressed Steel Pillow Block Housing - 149.2 mm Length

Technical Specifications:

  • Catalog Code: PP209 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece pillow block)
  • Total Length (L): 149.2 mm
  • Bolt Hole Distance (J): 119.1 mm
  • Base Width (A): 44.5 mm
  • Base to Center Height (F): 42.9 mm
  • Overall Height (F2): 85.5 mm
  • Bolt Hole Size (N): 13.5 mm
  • Weight: 0.411 kg
  • Country of Origin: China

Product Overview:

The PP209 RICH is a robust, lightweight two-piece pressed steel pillow block housing designed for medium-light industrial applications. This model is engineered to hold 209 series insert bearings, which typically feature a 45 mm bore diameter. The housing is constructed from two stamped steel plates that interlock to form a stable mounting cradle for the bearing. Its primary advantage is providing a functional and space-efficient support system where the extreme weight and rigidity of cast iron are not necessary. The internal seating area is spherically shaped, allowing the insert bearing to self-align and compensate for moderate shaft misalignments or mounting inaccuracies. With a bolt hole distance of 119.1 mm, it is commonly used in agricultural machinery, material handling conveyors, and ventilation fans. The steel surface is treated to offer basic protection against environmental wear, ensuring a reliable service life in standard operating conditions.

Key Performance Advantages:

  • High Strength-to-Weight Ratio: At 0.411 kg, it offers a strong mounting solution while significantly reducing the overall weight of the equipment.
  • Self-Alignment Support: Facilitates the self-aligning movement of spherical insert bearings, preventing premature wear from shaft deflection.
  • Cost-Effective Maintenance: The simple two-piece design allows for rapid installation and easy bearing replacement, reducing downtime.
  • Optimized for 209 Series: Precision-engineered to fit 45 mm bore insert bearings with standard outside diameters.

Transparency Note: This housing is manufactured under the RICH brand. The code PP209 is used for identification purposes and does not imply affiliation with other manufacturers.
