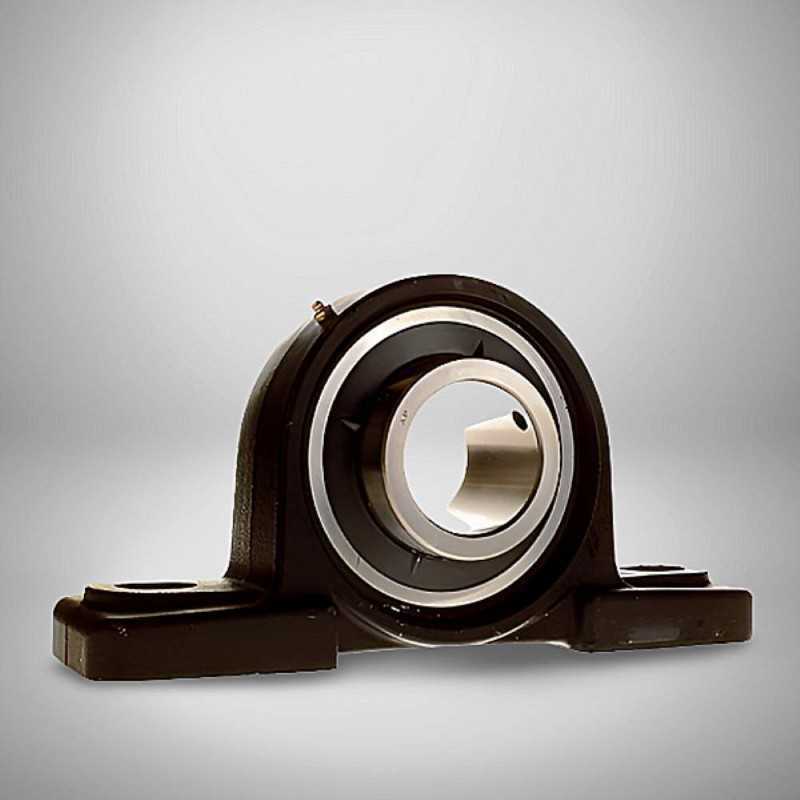

UCP324 RICH Cast Iron Bearing Unit – 120 mm Bore
Technical Specifications:
- Brand: RICH
- Type: Cast iron bearing unit (Pillow block)
- Model: UCP324 RICH
- Bore Diameter (d): 120 mm
- Overall Length (L): 570 mm
- Mounting Hole Distance (J): 450 mm
- Center Height (F): 160 mm
- Total Height (F2): 320 mm
- Housing Width (A): 140 mm
- Housing Base Width (A1): 88 mm
- Mounting Hole Diameter (N): 40 mm
- Housing Material: Cast iron
- Insert Type: UC-series bearing
- Weight: 55 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Heavy-duty pillow block housing with UC-series insert bearing.
- Internal Geometry: Spherical outer ring design for shaft misalignment compensation.
- Material Type: Cast iron housing with steel insert bearing.
- Sealing System: Contact seals on the insert bearing.
- Lubrication: Pre-lubricated insert with grease nipple.
- Dimensional Format: 120 mm bore; heavy series pillow block configuration.
Transparency Note: This bearing unit is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.
