UCPA211 RICH

Type: Cast Iron Bearing Unit (Short Base Pillow Block)
Model: RICH UCPA211
Bore Diameter: 55 mm
Brand: RICH
Origin: China
RICH
UCPA211
€10.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

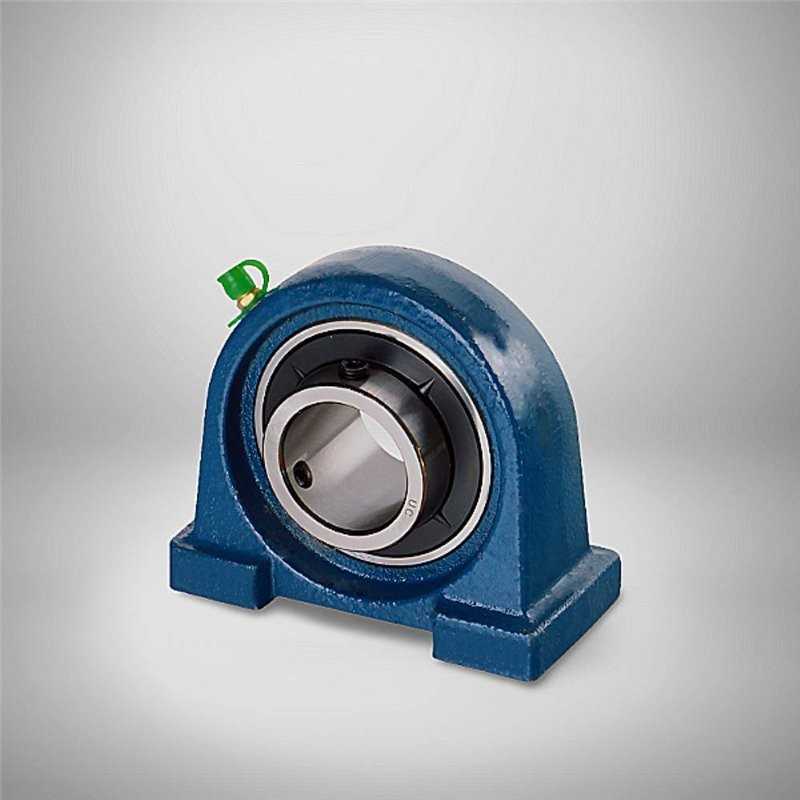

UCPA211 RICH Cast Iron Bearing Unit – 55 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast iron bearing unit (Short base pillow block)
  • Model: UCPA211 RICH
  • Bore Diameter (d): 55 mm
  • Overall Length (L): 140 mm
  • Mounting Hole Distance (J): 104 mm
  • Center Height (F): 63.5 mm
  • Total Height (F2): 125 mm
  • Housing Width (A): 66 mm
  • Housing Base Width (A1): 33 mm
  • Housing Material: Cast iron
  • Insert Type: UC-series bearing
  • Weight: 2.431 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Short base pillow block housing with tapped holes and UC-series insert bearing.
  • Internal Geometry: Spherical outer ring design for shaft misalignment compensation.
  • Material Type: Cast iron housing with steel insert bearing.
  • Sealing System: Contact seals on the insert bearing.
  • Lubrication: Pre-lubricated insert with grease nipple.
  • Dimensional Format: 55 mm bore; short base configuration.

Transparency Note: This bearing unit is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
55
Outer Diameter
0
Width
0
