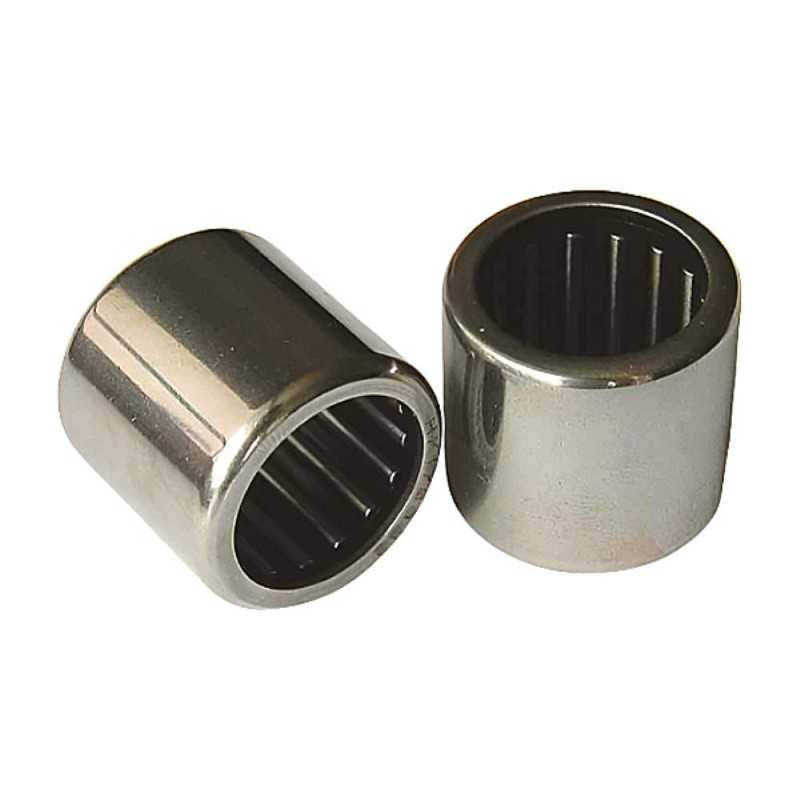

Drawn Cup Roller Clutch RC 101410 RICH - 15.875 x 22.22 x 15.8 mm

The RC 101410 RICH is a drawn cup roller clutch designed for applications that require one-way rotation, overrunning, or indexing. This compact unit features precisely formed sprags or rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing a reliable clutching action. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. This type of clutch is often used in applications like conveyors, packaging machinery, and fitness equipment where controlled rotational movement is critical. The dimensions of this unit are 15.875 mm inner diameter, 22.22 mm outer diameter, and 15.8 mm width, with a very light approximate weight of 0.014 kg. Manufactured in China by RICH.

Key Specifications:

  • Type: Drawn Cup Roller Clutch
  • Dimensions: 15.875 mm inner diameter x 22.22 mm outer diameter x 15.8 mm width
  • Weight: 0.014 kg
  • Functionality: One-way rotation, overrunning, indexing
  • Country of Origin: China
  • Brand: RICH

Key Advantages:

  • Compact, Space-Saving Design
  • Reliable One-Way Clutch or indexing action
  • Simple Press-Fit Installation
  • Lightweight
  • Durable Construction

Data sheet

Inner Diameter
15.875
Outer Diameter
22,22
Width
15,88
Weight
0,014
Category
Drawn Cup Roller Clutch
