  • UK308G+H 2308X 35x90x46 UK308G+H2308X RICH

UK308G+H 2308X 35x90x46

Type: Insert Ball Bearing + Adapter Sleeve
Model: UK308G+H 2308X
Dimensions: 35 x 90 x 46 mm
Sealing: Protected Lip Seals
Origin: China
RICH
UK308G+H2308X
€9.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

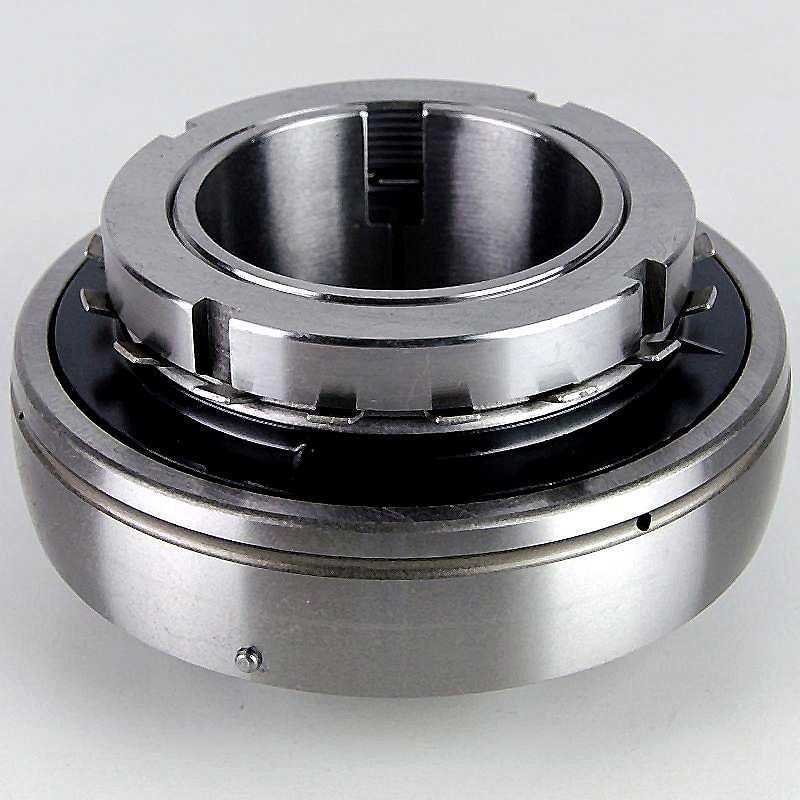

UK308G+H 2308X Insert Ball Bearing with Adapter Sleeve - 35 x 90 x 46 mm

Technical Specifications:

  • Catalog Code: UK308G+H 2308X
  • Type: Insert ball bearing with adapter sleeve
  • Bore Diameter (d): 35 mm
  • Outer Diameter (D): 90 mm
  • Overall Width (T): 46 mm
  • Inner Ring Width: 35 mm
  • Outer Ring Width (C): 28 mm
  • Taper: 1:12
  • Outer Ring Profile: Rounded (Yes)
  • Sealing: Double-sided lip seal covered with a plate
  • Weight: 0.956 kg
  • Country of Origin: China

Key Performance Advantages:

  • Concentric Adapter Sleeve Mounting: The H 2308X adapter sleeve provides a precise, 360-degree grip on the shaft. This eliminates the risk of shaft slippage and reduces rotational imbalance, which is vital for high-speed industrial applications.
  • Self-Aligning Capability: Featuring a rounded (spherical) outer ring, this bearing can accommodate static misalignment of the shaft. This flexibility simplifies installation and prevents internal stress, ensuring a longer operational life.
  • Reinforced Lip Sealing System: The double-sided lip seals are protected by a metal cover plate. This design effectively retains lubrication while creating a high-strength barrier against the ingress of dust, grit, and moisture.
  • Optimized Internal Stability: The 1:12 tapered bore allows for fine-tuning the internal clearance during the mounting process, providing stable rotation even under heavy radial loads.
  • Industrial Grade Performance: Part of the 300 series, this bearing is built with a more robust cross-section than standard inserts, offering increased load capacity and durability for continuous duty cycles.

Transparency Note: The code UK308G+H 2308X is used for identification purposes.

Data sheet

Inner Diameter
35
Outer Diameter
90
Width
46
Category
Insert Ball Bearing with Adapter Sleeve
