  • SS7208 RICH 40x80x18 SS7208 RICH

SS7208 RICH 40x80x18

RICH
SS7208
€32.05
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

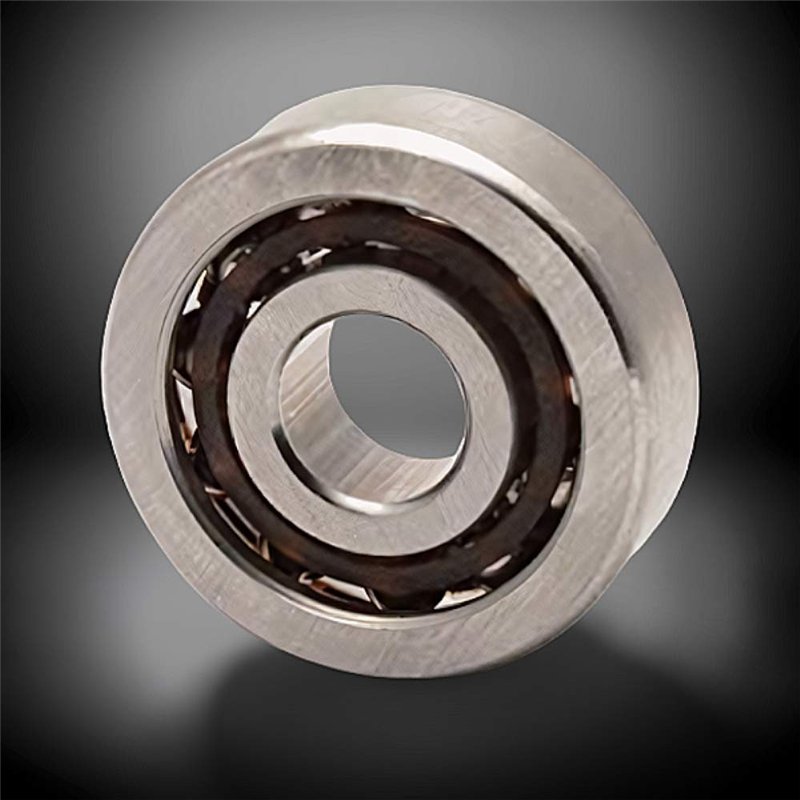

SS 7208 RICH Single Row Angular-Contact Ball Bearing - Stainless Steel - 40 x 80 x 18 mm

The SS 7208 RICH is a high-quality single row angular-contact ball bearing, meticulously manufactured by RICH in China. This bearing is constructed from stainless steel, offering superior corrosion resistance, making it an excellent choice for applications exposed to moisture, chemicals, or other harsh environments. It is specifically designed to accommodate combined loads, meaning it can handle both significant radial loads and axial loads acting in one direction.

With precise dimensions of 40 mm bore, 80 mm outer diameter, and 18 mm width, this bearing provides a robust and effective solution for various demanding applications. It features a durable steel cage, ensuring robust performance and reliable operation. A key characteristic of this bearing is its 40° contact angle, which provides a high axial load-carrying capacity.

Weighing 0.36 kg, this durable component from RICH offers dependable performance and resilience. It is ideally suited for pumps, machine tool spindles, gearboxes, and other applications that require high precision, high speed, and the ability to handle combined loads, particularly in environments where standard steel bearings would be susceptible to corrosion.

Key Specifications:

  • Type: Single Row Angular-Contact Ball Bearing
  • Brand: RICH
  • Model: SS 7208 RICH
  • Material: Stainless Steel
  • Dimensions: 40 mm bore x 80 mm outer diameter x 18 mm width
  • Bore Diameter (d): 40 mm
  • Outer Diameter (D): 80 mm
  • Width: 18 mm
  • Cage Material: Steel
  • Contact Angle: 40°
  • Weight: 0.36 kg
  • Country of Origin: China

Key Advantages:

  • Stainless Steel Construction: Provides excellent corrosion resistance for applications in moist, chemical, or aggressive environments.
  • High Combined Load Capacity: Efficiently handles both radial loads and high axial loads in one direction due to its angular contact design and 40° contact angle.
  • High Precision: Suitable for applications requiring accurate shaft guidance and rigidity.
  • Durable Steel Cage: Ensures robust performance and reliable operation under various conditions.
  • RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.

Data sheet

Inner Diameter
40
Outer Diameter
80
Width
18
Weight
0,388
Ball Rows
Single Row
Category
Single Row Angular-Contact Ball Bearing
