29410 M RICH 50x110x36 29410M RICH

29410 M RICH 50x110x36

Type: Spherical Roller Thrust Bearing
Model: 29410 M RICH
Dimensions: 50 x 110 x 36 mm
Cage: Machined Brass (M)
Brand: RICH
Origin: China
RICH
29410M
€123.21
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

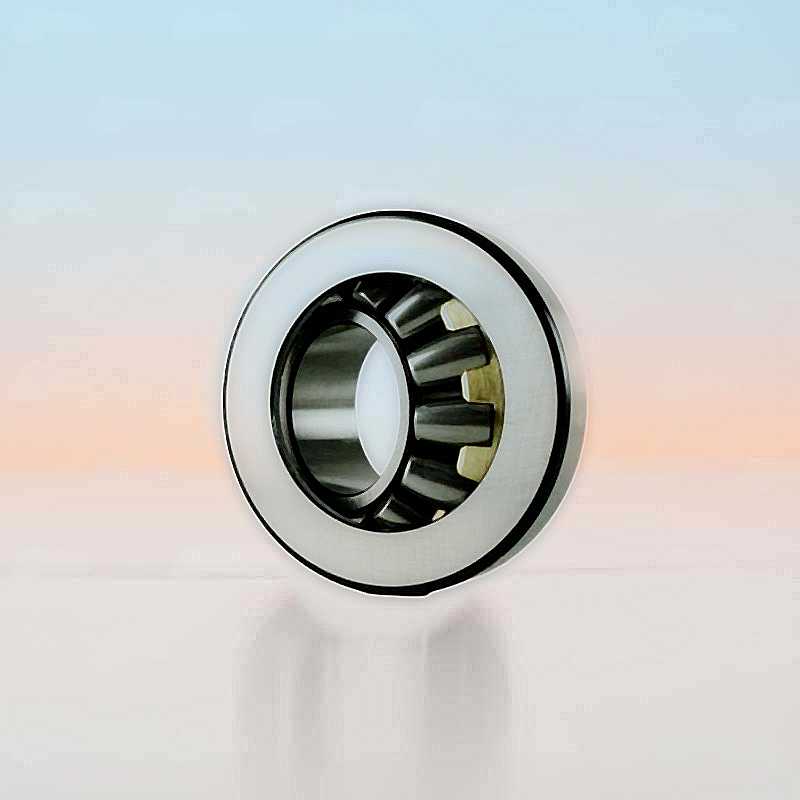

29410 M RICH Spherical Roller Thrust Bearing - 50 x 110 x 36 mm

Technical Specifications:

  • Catalog Code: 29410 M RICH
  • Brand: RICH
  • Type: Spherical roller thrust bearing
  • Bore Diameter (d): 50 mm
  • Outer Diameter (D): 110 mm
  • Total Height (T): 36 mm
  • Inner Ring Width (T3): 25 mm
  • Outer Ring Width (T1): 20.5 mm
  • Cage: Machined brass, guided by the rolling elements (M)
  • Weight: 1.83 kg
  • Country of Origin: China

Product Overview:

The 29410 M RICH is a high-performance spherical roller thrust bearing designed to accommodate very heavy axial loads in one direction while simultaneously handling moderate radial forces. Featuring a 50 mm bore and a 110 mm outer diameter, this bearing is engineered for applications where high rotational speeds and significant thrust loads intersect. The machined brass cage (M) is guided by the rolling elements, providing exceptional stability and durability even under vibration or shock loading. A key design advantage of the 29410 series is its self-aligning capability; the spherical raceways allow the bearing to compensate for shaft deflection and angular misalignment without increasing friction or heat. This makes it an ideal choice for heavy-duty industrial equipment such as vertical pumps, marine propulsion systems, extruders, and gearboxes where reliability is critical.

Key Performance Advantages:

  • High Load Carrying Capacity: Optimized internal geometry allows the bearing to sustain massive axial loads in high-stress environments.
  • Self-Aligning Design: Automatically adjusts to angular misalignments between the shaft and the housing, reducing mechanical wear.
  • Machined Brass Cage (M): Offers superior mechanical strength and improved lubrication film retention compared to pressed steel alternatives.
  • Extended Service Life: Manufactured from high-purity bearing steel to ensure long-term dimensional stability and resistance to fatigue.

Transparency Note: This bearing is manufactured under the RICH brand. The code 29410 M is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
50
Outer Diameter
110
Width
36
Cage
Brass
Category
Spherical Roller Thrust Bearing
