3203 2Z C3 RICH 17x40x17,5

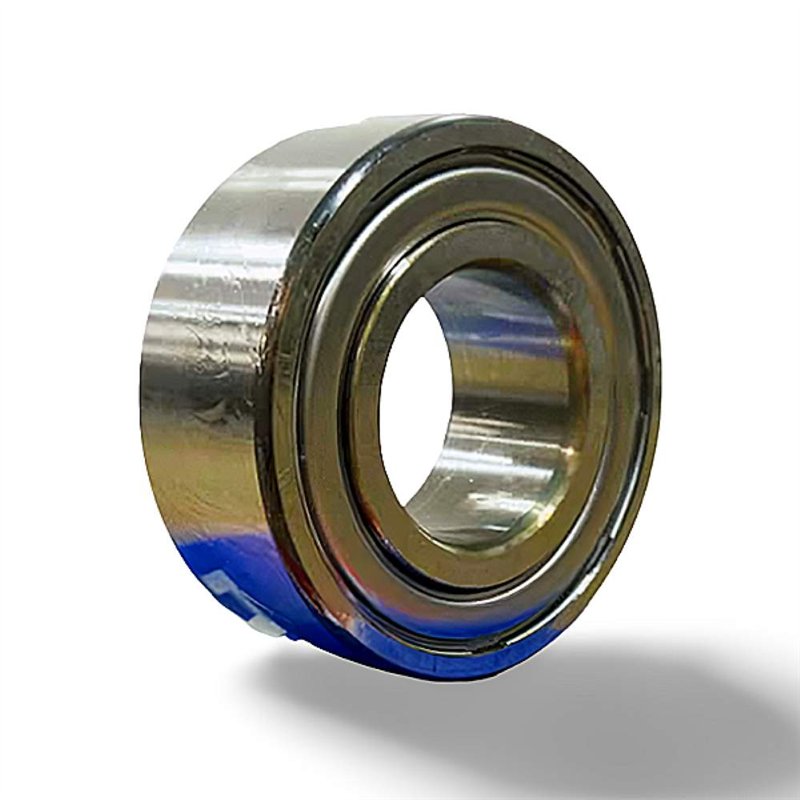

3203-2Z C3 RICH Double Row Angular-Contact Ball Bearing (Also Known as 5203) - 17 x 40 x 17.5 mm

The 3203-2Z C3 RICH, also known as 5203, is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 17 mm bore, 40 mm outer diameter, and 17.5 mm width, it offers a compact and effective solution for demanding applications.

This RICH bearing features a durable steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. A key characteristic of this bearing is its double-sided non-contact shields (2Z). These shields provide effective protection against the ingress of larger contaminants, such as dust and debris, while allowing for higher rotational speeds compared to contact seals, making it suitable for applications where minimal friction and good protection are both desired.

Weighing just 0.1 kg, this lightweight yet durable component from RICH offers dependable performance and resilience. It is ideally suited for applications requiring high precision and the ability to manage combined loads in both directions, especially in environments where protection from debris is needed without compromising on rotational speed, such as small industrial machines, electric motors, and precision instruments. The C3 clearance indicates a greater than normal internal clearance, which is beneficial for applications involving high temperatures, rapid acceleration, or potential misalignment, reducing friction and preventing premature wear.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3203-2Z C3 RICH (Also known as 5203)
• Dimensions: 17 mm bore x 40 mm outer diameter x 17.5 mm width
• Bore Diameter (d): 17 mm
• Outer Diameter (D): 40 mm
• Width: 17.5 mm
• Clearance: C3
• Cage Material: Steel
• Shielding: Double-sided non-contact shields (2Z)
• Weight: 0.1 kg
• Country of Origin: China

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Durable Steel Cage: Ensures robust performance and extended service life.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Shielded Design (2Z): Offers protection from larger contaminants while supporting higher operational speeds compared to contact seals.
• Enhanced Clearance (C3): Provides greater than normal internal clearance for applications with high temperatures, rapid accelerations, or potential misalignment.
• Versatile Naming: Also known as 5203 for broader compatibility and ease of identification.
