FB092 2020 RICH 20x23x20 FB0922020 RICH
zoom_out_map
FB092 2020 RICH 20x23x20 FB0922020 RICH

FB092 2020 RICH 20x23x20

Type: Thin Wall Bronze Bush
Model: FB092 2020 RICH
Bore: 20 mm
Material: Bronze with Grease Holes
Brand: RICH
Origin: China
RICH
FB0922020
€3.95
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

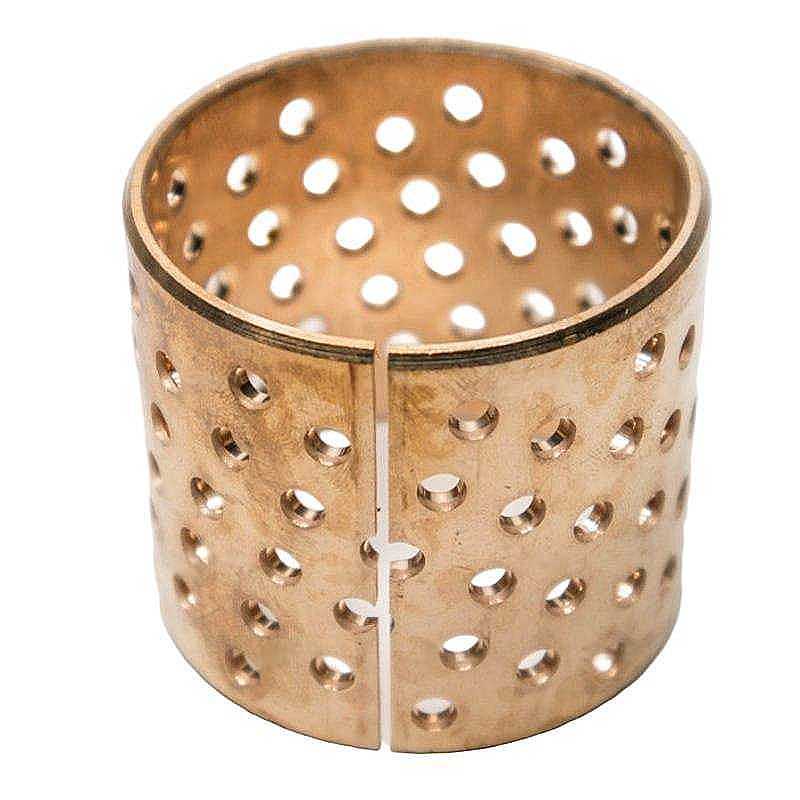

FB092 2020 RICH Thin Wall Bronze Bush - 20 x 23 x 20 mm

Technical Specifications:

  • Catalog Code: FB092 2020 RICH
  • Brand: RICH
  • Type: Thin wall wrapped bronze bush
  • Dimensions: 20 x 23 x 20 mm
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 23 mm
  • Width (L): 20 mm
  • Material: CuSn8 bronze with diamond-shaped grease holes
  • Weight: 0.019 kg
  • Country of Origin: China

Key Performance Advantages:

  • Optimized Lubrication: Features diamond-shaped grease indentations (grease holes) across the inner surface, which act as reservoirs to ensure continuous lubrication and reduced maintenance.
  • High Load Capacity: Manufactured from cold-formable CuSn8 bronze, providing excellent fatigue resistance and the ability to handle high specific loads in oscillating movements.
  • Space-Saving Design: The thin wall construction allows for extremely compact housing designs without sacrificing the mechanical strength required for industrial applications.
  • Corrosion Resistance: The high-quality bronze material offers natural resistance to corrosion and chemical agents, making it suitable for damp or harsh environments.

Transparency Note: This product is manufactured under the RICH brand. The code FB092 2020 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
23
Width
20
Category
Thin Wall Bronze Bush
